Square-D / Schneider - SQUARED LA9G3761 Reverser connectio
Login or create an account to check prices & order
Essential specifications
Catalog Number - LA9G3761
Country of Origin - USA
Depths - 298 mm
ERP_productname - SQD LA9G3761 REVERSER CONNECTION BAR,TESYS GIGA CONTACTOR,FOR LC1G265-500,3 POLE
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606481916693
Part #
455918
Catalog #
LA9G3761
Commercial reference
LA9G3761
Catalog Number:
LA9G3761
Country of Origin:
USA
Depths:
298 mm
ERP_productname:
SQD LA9G3761 REVERSER CONNECTION BAR,TESYS GIGA CONTACTOR,FOR LC1G265-500,3 POLE
Family Brand Name:
Schneider Electric
Heights:
65 mm
Widths:
74 mm
SoneparProductId:
SKU_US_383622449

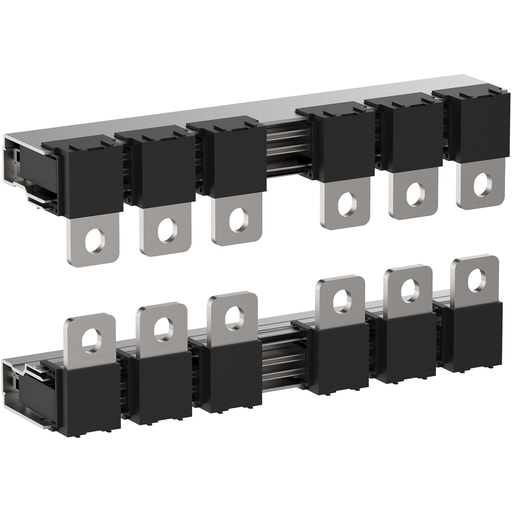

These accessories are reverser bars for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25.C to 60.C operation ambient air temperature, No derating up to 3000m altitude. Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LC1G265BEEA; LC1G330BEEA; LC1G400EHEN; LC1G500KUEN - Cross Sell Products: LR9G500
