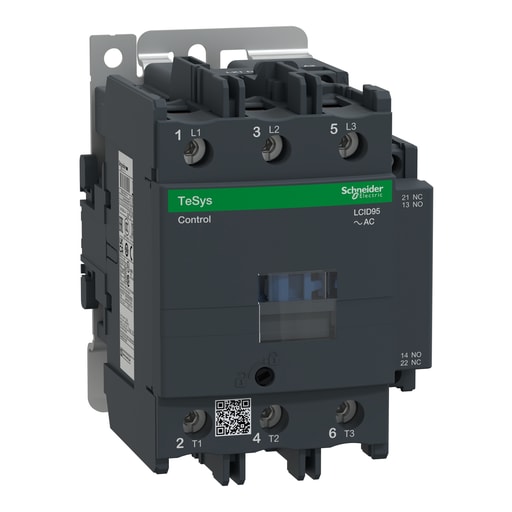

Square-D / Schneider - SQUARED LC1D95M7 IEC contactor, TeS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110451637
Applications - Motor control;Resistive load
Catalog Number - LC1D95M7
Coil Voltage - 220 V AC 50/60 HZ,220 V AC STANDARD,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 1000 V AC
Country of Origin - Czechia
Packaging
1 ea
EAN
03389110451634
Part #
185184
Catalog #
LC1D95M7
Commercial reference
LC1D95M7
12-Digit UPC:
389110451637
Applications:
Motor control;Resistive load
Catalog Number:
LC1D95M7
Coil Voltage:
220 V AC 50/60 HZ,220 V AC STANDARD,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 1000 V AC
Country of Origin:
Czechia
Depths:
130 mm
ERP_productname:
SQD LC1D95M7 CONTACTOR 575VAC 95AMP IEC +OPTIONS
Family Brand Name:
Schneider Electric
Heights:
127 mm
Impedance:
0.8 MOhm - Ith 125 A 50 Hz For Power Circuit
Size:
127 MM,130 MM,85 MM
Sub Brand:
TeSys D
Tc Connection:
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 4-16 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.SOLID WITHOUT CABLE END
Type:
Contactor
Voltage:
1000 Volt
Wattage:
12.5 Watt AC-1 - 7.2 Watt AC-3
Widths:
85 mm
SoneparProductId:
SKU_US_31709893
