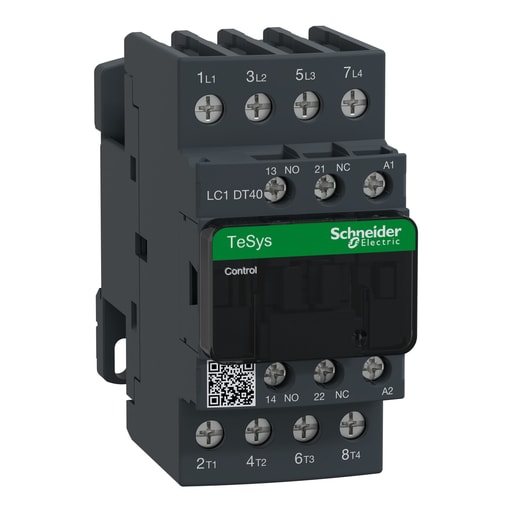

Square-D / Schneider - SQUARED LC1DT40M7 IEC contactor, Te

Essential specifications

12-Digit UPC - 785901825982
Applications - RESISTIVE LOAD
Catalog Number - LC1DT40M7
Coil Voltage - 220 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110577709

Part #

221937

Catalog #

LC1DT40M7

Commercial reference

LC1DT40M7

12-Digit UPC:

785901825982

Applications:

RESISTIVE LOAD

Catalog Number:

LC1DT40M7

Coil Voltage:

220 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Indonesia

Depths:

99 mm

ERP_productname:

SQD LC1DT40M7 240VAC 4 POLE RELAY

Family Brand Name:

Schneider Electric

Heights:

91 mm

Impedance:

2 MOhm - Ith 40 A 50 Hz For Power Circuit

Size:

45 MM,91 MM,99 MM

Sub Brand:

TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-10 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-10 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 2.5-16 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 2.5-16 MMA.SOLID WITHOUT CABLE END

Type:

CONTACTOR

Voltage:

300 Volt

Wattage:

3.2 Watt AC-1

Widths:

45 mm

SoneparProductId:

SKU_US_29470676

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 220 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 3.90 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4RCU; LADN11; LADN20; LAD8N11; LADT2; LADN40; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LADN22S; LADN04; LADN13; LAD4VU; LAD6K10M; LAD9ET1S; LADR4; LADT4; LAD8N02; LAD9ET1; LADT9R1; LADT9R1V; LAD9V2 - Cross Sell Products: GV3P40; GV3L40; LRD340 - Spare Part Products: LX1D6M7
