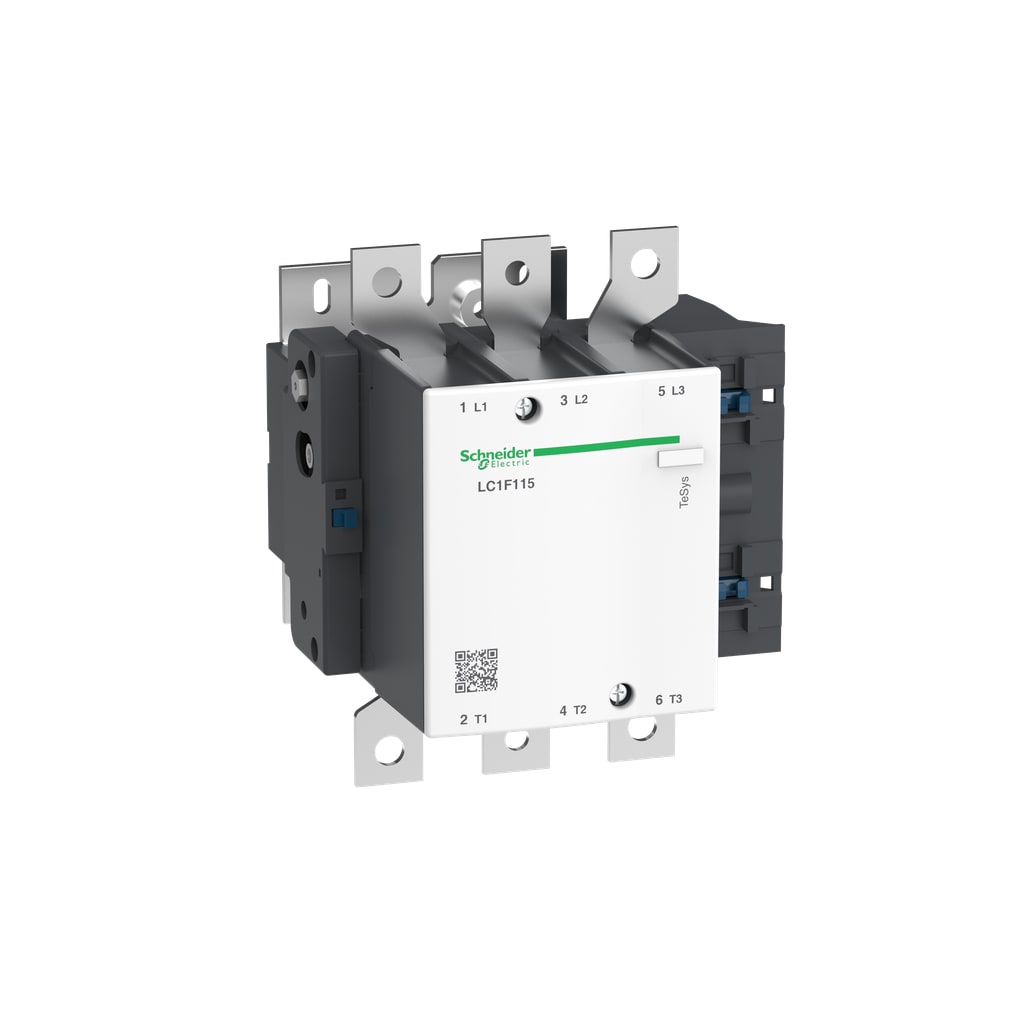

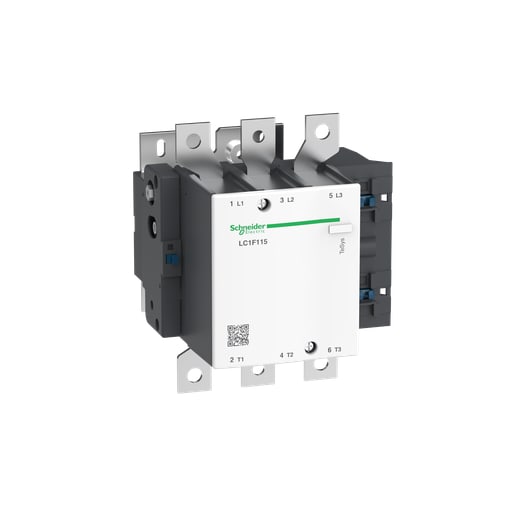

Square-D / Schneider - SQUARED LC1F115U7 TeSys F contactor

12-Digit UPC:

389110350930

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC1F115U7

Coil Voltage:

240 V AC 40...400 HZ,<= 690 V AC 50/60 HZ

Country of Origin:

Czech Republic

Depths:

171 mm

ERP_productname:

SQD LC1F115U7 TESYS F CONTACTOR - 3P (3 NO) - AC-3 - <= 440 V 115 A - COIL 240 V AC

Family Brand Name:

Schneider Electric

Heights:

162 mm

Impedance:

0.37 MOhm - Ith 200 A 50 Hz

Size:

162 MM,163.3 MM,171 MM

Sub Brand:

TESYS F

Tc Connection:

POWER CIRCUIT BAR 2 20 X 3 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 95-95 MMA.-POWER CIRCUIT CONNECTOR 1 95-95 MMA.-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Voltage:

690 Volt

Wattage:

15 Watt AC-1 - 5 Watt AC-3

Widths:

163.3 mm

SoneparProductId:

SKU_US_73680493
