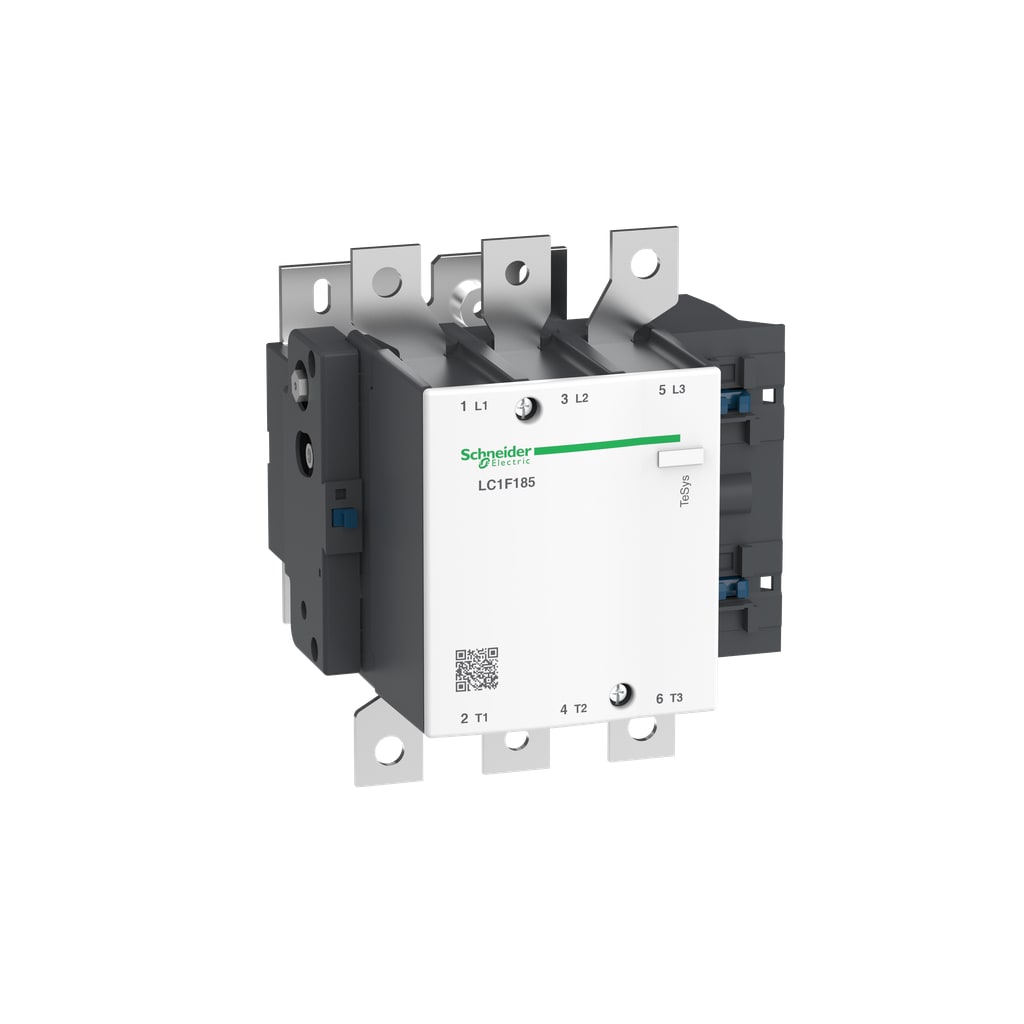

Square-D / Schneider - SQUARED LC1F185BD TeSys F contactor

12-Digit UPC:

785901790099

Applications:

MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC1F185BD

Coil Voltage:

24 V DC,24 V DC STANDARD,<= 460 V DC- <= 690 V AC 50/60 HZ

Country of Origin:

Czech Republic

Depths:

181 mm

ERP_productname:

SQD LC1F185BD CONTACTOR 600VAC 185AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

174 mm

Impedance:

0.33 MOhm - Ith 275 A 50 Hz

Size:

168.5 MM,174 MM,181 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 25 X 3 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 150-150 MMA.-POWER CIRCUIT CONNECTOR 1 150-150 MMA.-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Voltage:

460 Volt

Wattage:

12 Watt AC-3 - 25 Watt AC-1

Widths:

168.5 mm

SoneparProductId:

SKU_US_31750080
