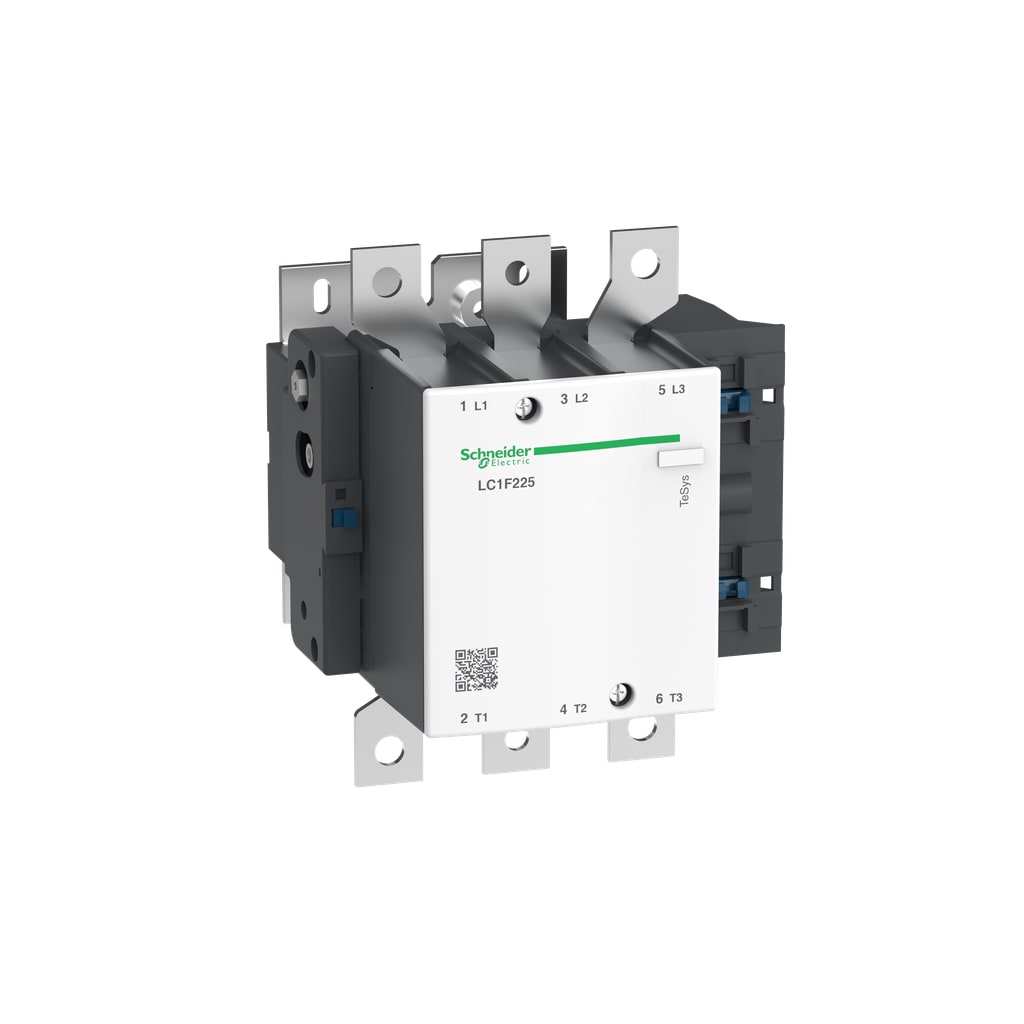

Square-D / Schneider - SQUARED LC1F225BD TeSys F contactor

12-Digit UPC:

785901423508

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC1F225BD

Coil Voltage:

24 V DC,24 V DC STANDARD,<= 460 V DC- <= 690 V AC 50/60 HZ

Country of Origin:

Czech Republic

Depths:

181 mm

ERP_productname:

SQD LC1F225BD NON-REV.CONTACTOR 575VAC 225A IEC

Family Brand Name:

Schneider Electric

Heights:

197 mm

Impedance:

0.32 MOhm - Ith 315 A 50 Hz

Size:

168.5 MM,181 MM,197 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 32 X 4 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 185-185 MMA.-POWER CIRCUIT CONNECTOR 1 185-185 MMA.-POWER CIRCUIT BOLTED CONNECTION

Type:

CONTACTOR,DIRECT ON-LINE CONTACTOR,STANDARD

Voltage:

460 Volt

Wattage:

32 Watt AC-1 - 16 Watt AC-3

Widths:

168.5 mm

SoneparProductId:

SKU_US_29677435
