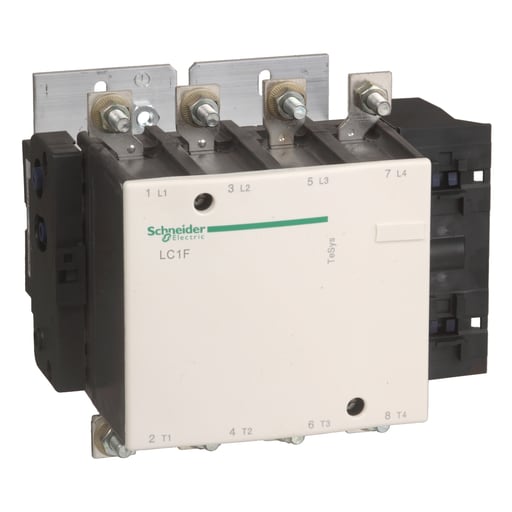

Square-D / Schneider - SQUARED LC1F2654F7 TeSys F contacto

12-Digit UPC:

785901552567

Applications:

RESISTIVE LOAD

Catalog Number:

LC1F2654F7

Coil Voltage:

110 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC

Depths:

213 mm

ERP_productname:

SQD LC1F2654F7 CONTACTOR 600VAC 265AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

203 mm

Impedance:

0.3 MOhm - Ith 350 A 50 Hz

Size:

203 MM,213 MM,244.5 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 32 X 4 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 240-240 MMA.-POWER CIRCUIT CONNECTOR 1 240-240 MMA.-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Wattage:

37 Watt AC-1

Widths:

244.5 mm

SoneparProductId:

SKU_US_315988825
