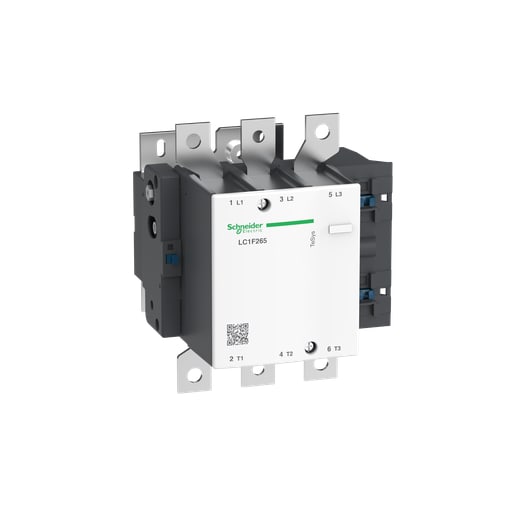

Square-D / Schneider - SQUARED LC1F265BD TeSys F contactor

12-Digit UPC:

785901617891

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC1F265BD

Coil Voltage:

24 V DC,24 V DC STANDARD,<= 1000 V AC 50/60 HZ- <= 460 V DC

Country of Origin:

Czech Republic

Depths:

213 mm

ERP_productname:

SQD LC1F265BD CONTACTOR 600VAC 265AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

203 mm

Impedance:

0.3 MOhm - Ith 350 A 50 Hz

Size:

201.5 MM,203 MM,213 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 32 X 4 MM-POWER CIRCUIT LUGS-RING TERMINALS 1 240-240 MMA.-POWER CIRCUIT CONNECTOR 1 240-240 MMA.-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Voltage:

1000 Volt

Wattage:

37 Watt AC-1 - 21 Watt AC-3

Widths:

201.5 mm

SoneparProductId:

SKU_US_30897566
