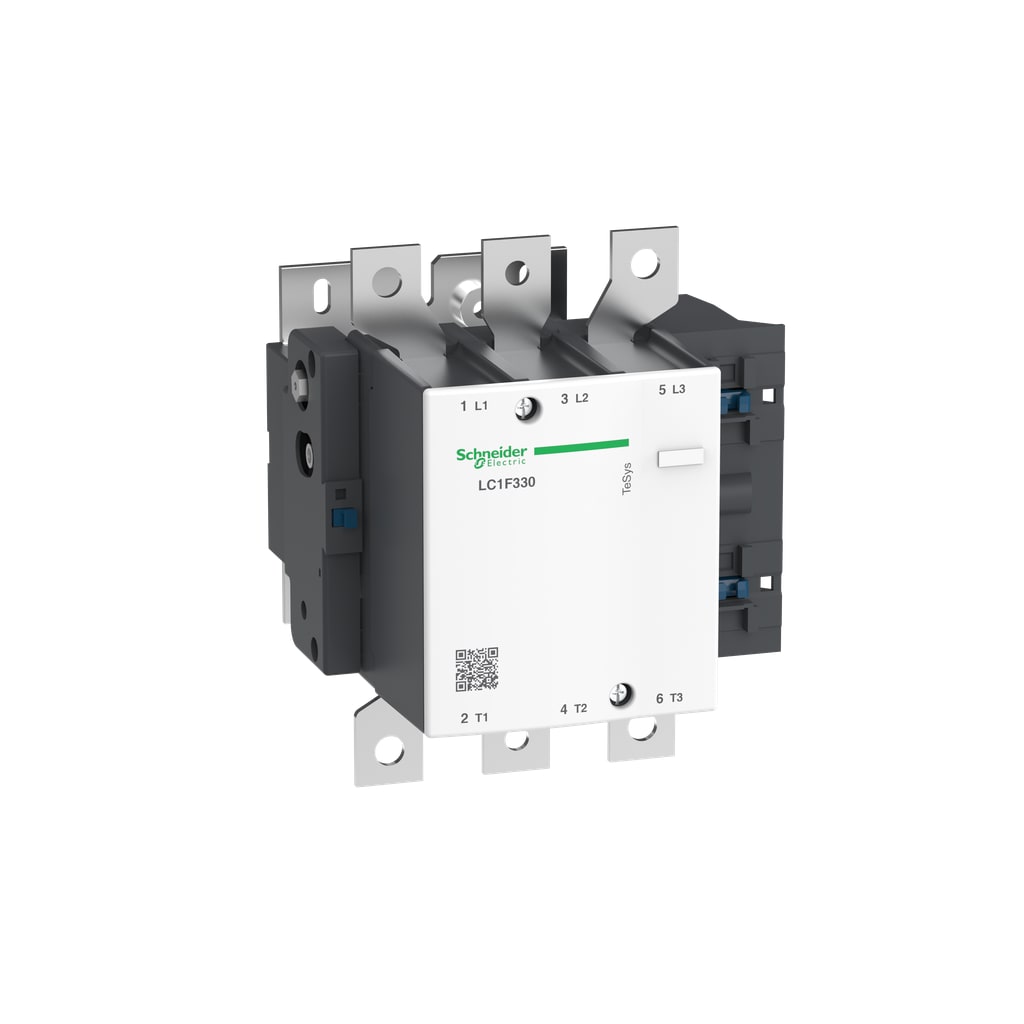

Square-D / Schneider - SQUARED LC1F330B7 TeSys F contactor

12-Digit UPC:

785901474562

Applications:

MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC1F330B7

Coil Voltage:

24 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC

Country of Origin:

Czech Republic

Depths:

219 mm

ERP_productname:

SQD LC1F330B7 CONTACTOR 600VAC 330AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

206 mm

Impedance:

0.28 MOhm - Ith 400 A 50 Hz

Size:

206 MM,213 MM,219 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT LUGS-RING TERMINALS 1 240-240 MMA.-POWER CIRCUIT BAR 2 30 X 5 MM-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Voltage:

1000 Volt

Wattage:

44 Watt AC-1 - 31 Watt AC-3

Widths:

213 mm

SoneparProductId:

SKU_US_197793390
