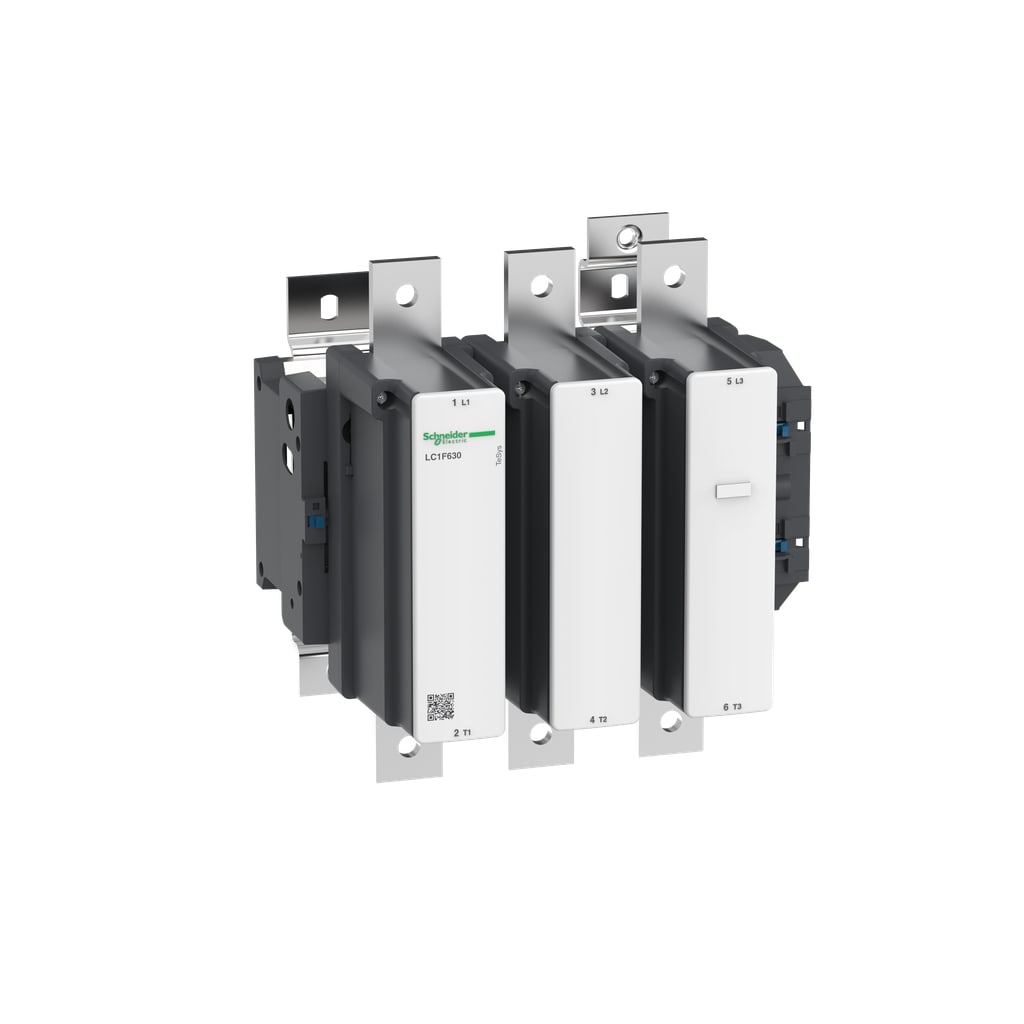

Square-D / Schneider - SQUARED LC1F630G7 TeSys F contactor

12-Digit UPC:

785901663515

Applications:

MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC1F630G7

Coil Voltage:

120 V AC 40...400 HZ,<= 1000 V AC 50/60 HZ- <= 460 V DC

Country of Origin:

Czech Republic

Depths:

255 mm

ERP_productname:

SQD LC1F630G7 CONTACTOR 575VAC 630AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

304 mm

Impedance:

0.12 MOhm - Ith 1000 A 50 Hz

Size:

255 MM,304 MM,309 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 60 X 5 MM-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Voltage:

1000 Volt

Wattage:

120 Watt AC-1 - 48 Watt AC-3

Widths:

309 mm

SoneparProductId:

SKU_US_32074381
