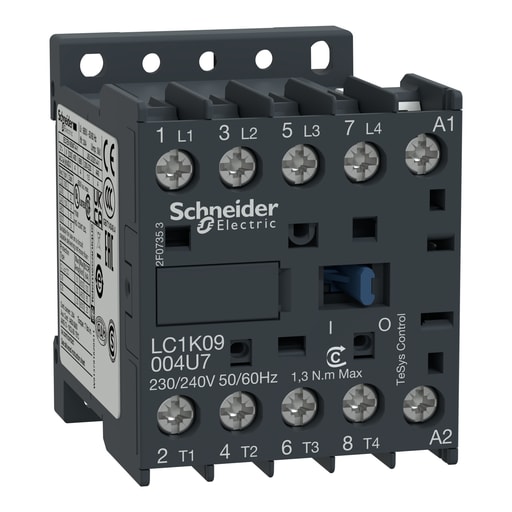

Square-D / Schneider - SQUARED LC1K09004U7 Contactor, TeSy

CopyCopy
Square-D / Schneider - SQUARED LC1K09004U7 Contactor, TeSy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901863380

  • Applications - CONTROL,RESISTIVE LOAD

  • Catalog Number - LC1K09004U7

  • Coil Voltage - 230...240 V AC 50/60 HZ,POWER CIRCUIT 690 V AC 50/60 HZ

  • Country of Origin - Indonesia

Packaging

  • 1 ea

EAN

03389110488500

Part #

100545

Catalog #

LC1K09004U7

Commercial reference

LC1K09004U7

12-Digit UPC:

785901863380

Applications:

CONTROL,RESISTIVE LOAD

Catalog Number:

LC1K09004U7

Coil Voltage:

230...240 V AC 50/60 HZ,POWER CIRCUIT 690 V AC 50/60 HZ

Country of Origin:

Indonesia

Depths:

57 mm

ERP_productname:

SQD LC1K09004U7 CONTACTOR 600VAC 9AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

45 MM,57 MM,58 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

Contactor

Widths:

45 mm

SoneparProductId:

SKU_US_315842297

TeSys K contactor, 4 poles (4NO), for non-inductive load control applications up to 20A/690V AC-1. It provides a 230-240V 50/60Hz AC coil, without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50.C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA1KN40; LA4KA1U; LA1KN31; LA1KN20; LA1KN04; LA4KE1UG; LA1KN02; LA1KN13; LA9D90; LA2KT2E; LA2KT2U
