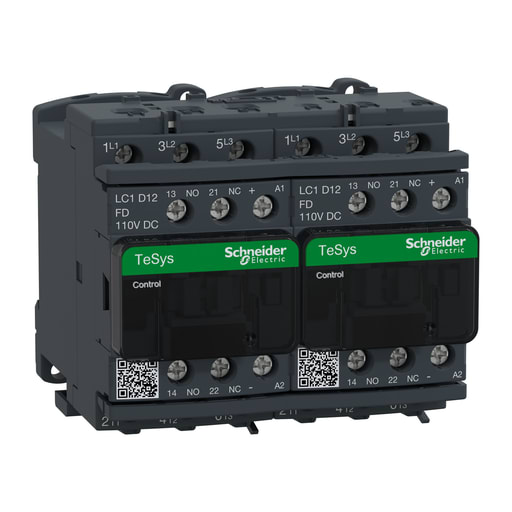

Square-D / Schneider - SQUARED LC2D12FD TeSys Deca reversi

12-Digit UPC:

785901549635

Applications:

MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC2D12FD

Coil Voltage:

110 V DC,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

France

Depths:

95 mm

ERP_productname:

SQD LC2D12FD REVERSING CONTACTOR 575VAC 12A IEC

Family Brand Name:

Schneider Electric

Heights:

77 mm

Impedance:

2.5 MOhm - Ith 25 A 50 Hz For Power Circuit

Size:

77 MM,90 MM,95 MM

Sub Brand:

TESYS D

Tc Connection:

POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END

Type:

Reversing contactor

Wattage:

1.56 Watt AC-1 - 0.36 Watt AC-3

Widths:

90 mm
