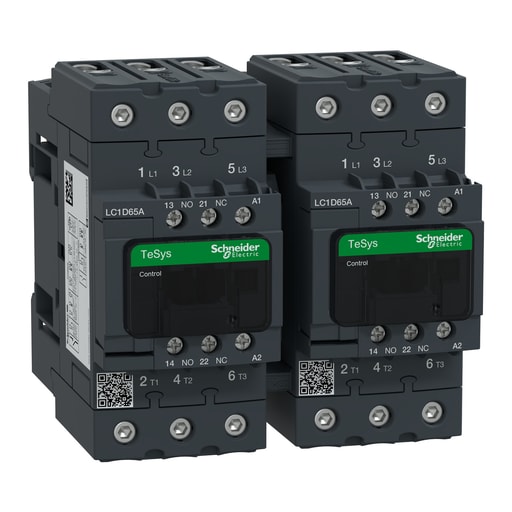

Square-D / Schneider - SQUARED LC2D65AL7 TeSys Deca revers

12-Digit UPC:

785901823957

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC2D65AL7

Coil Voltage:

200 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

France

Depths:

120 mm

ERP_productname:

SQD LC2D65AL7 TESYS D 3P EVERLINK AC REV CONTACTOR AC3 65A

Family Brand Name:

Schneider Electric

Heights:

122 mm

Impedance:

1.5 MOhm - Ith 80 A 50 Hz For Power Circuit

Size:

119 MM,120 MM,122 MM

Sub Brand:

TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.SOLID WITHOUT CABLE END

Type:

Reversing contactor

Wattage:

9.6 Watt AC-1 - 6.3 Watt AC-3

Widths:

119 mm

SoneparProductId:

SKU_US_315783287
