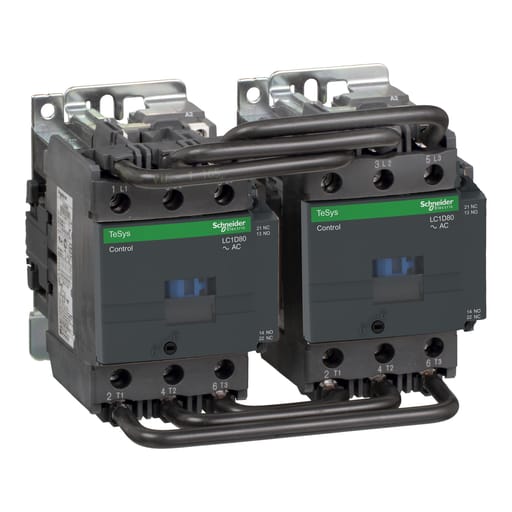

Square-D / Schneider - SQUARED LC2D80FE7 TeSys Deca revers

12-Digit UPC:

785901623885

Applications:

RESISTIVE LOAD-MOTOR CONTROL

Catalog Number:

LC2D80FE7

Coil Voltage:

115 V AC 50/60 HZ,115 V AC STANDARD,POWER CIRCUIT <= 1000 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Czechia

Depths:

158 mm

ERP_productname:

SQD LC2D80FE7 REVERSING CONTACTOR 575VAC 80A IEC

Family Brand Name:

Schneider Electric

Heights:

127 mm

Impedance:

0.8 MOhm - Ith 125 A 50 Hz For Power Circuit

Size:

127 MM,158 MM,182 MM

Sub Brand:

TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 4-16 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.SOLID WITHOUT CABLE END

Type:

Reversing contactor

Voltage:

1000 Volt

Wattage:

12.5 Watt AC-1 - 5.1 Watt AC-3

Widths:

182 mm

SoneparProductId:

SKU_US_192529450
