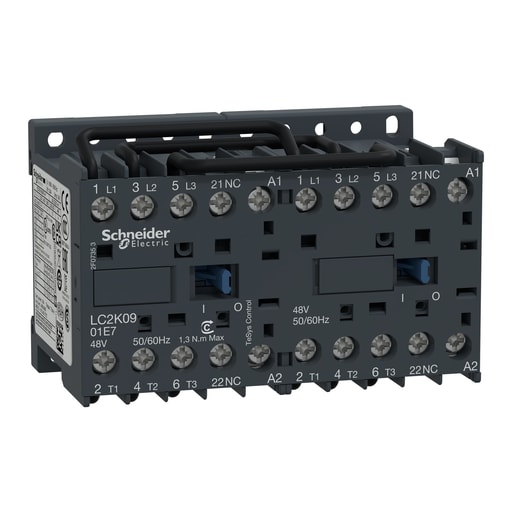

Square-D / Schneider - SQUARED LC2K0901E7 Reversing contac

Essential specifications

12-Digit UPC - 389110491879
Applications - CONTROL,MOTOR CONTROL-RESISTIVE LOAD
Catalog Number - LC2K0901E7
Coil Voltage - 48 V AC 50/60 HZ,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ
Country of Origin - France

Packaging

1 ea

EAN

03389110491876

Part #

266070

Catalog #

LC2K0901E7

Commercial reference

LC2K0901E7

12-Digit UPC:

389110491879

Applications:

CONTROL,MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC2K0901E7

Coil Voltage:

48 V AC 50/60 HZ,POWER CIRCUIT 690 V AC 50/60 HZ-SIGNALLING CIRCUIT <= 690 V AC 50/60 HZ

Country of Origin:

France

Depths:

57 mm

ERP_productname:

SQD LC2K0901E7 REVERSING CONTACTOR, TESYS K, 3P, AC-3, LT OR EQ TO 440V 9A, 1 NC, 48VAC COIL

Family Brand Name:

Schneider Electric

Heights:

58 mm

Impedance:

3 MOhm - Ith 20 A 50 Hz For Power Circuit

Size:

57 MM,58 MM,90 MM

Sub Brand:

TESYS K

Tc Connection:

SCREW CLAMP TERMINALS 1 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 1 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 0.34-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1.5-4 MMA.SOLID- SCREW CLAMP TERMINALS 2 0.75-4 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.34-1.5 MMA.FLEXIBLE WITH CABLE END

Type:

Reversing contactor

Voltage:

690 Volt

Widths:

90 mm

SoneparProductId:

SKU_US_125826742

LC2K0901E7 is a compact 3-pole TeSys K reversing contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 48V 50/60Hz AC coil, 2NC auxiliary contacts, a mechanical interlock and pre-wired reversing circuit. LC2K0901E7 is a 3-pole TeSys K reversing contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it is assembled with a mechanical interlock and a pre-wired reversing circuit. It includes a 48V 50/60Hz AC coil and 2NC built-in auxiliary contacts. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Provides a 48V AC coil compatible 50/60Hz and 2NC built-in auxiliary contact. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA1KN22; LA1KN11; LA1KN40; LA1KN31; LA1KN20; LA1KN04; LA1KN02; LA1KN13; LA9D90; LA4KE1E; LA1KN22M; LA1KN11M; LA2KT2E; LA2KT2U - Cross Sell Products: GV2ME14; LR2K0314; LR2K0316; GV2LE14
