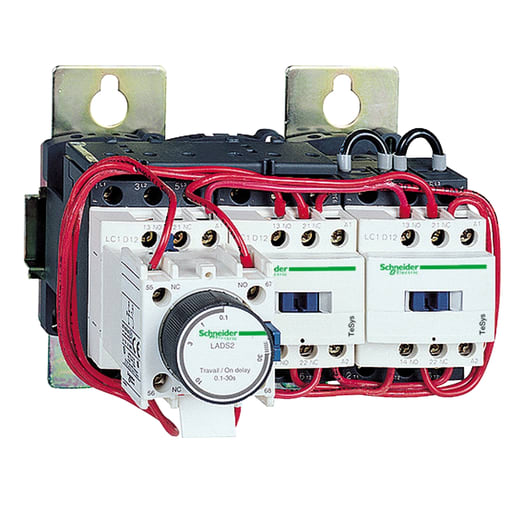

Square-D / Schneider - SQUARED LC3D80F7A64 TeSys Deca - st

12-Digit UPC:

785901455158

Applications:

MOTOR CONTROL

Catalog Number:

LC3D80F7A64

Country of Origin:

France

Depths:

183 mm

ERP_productname:

SQD LC3D80F7A64 WYE-DELTA STARTER 575VAC 75KW IEC

Enclosure:

IP20 FRONT FACE CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Heights:

143 mm

Number of Poles:

3 X 3 Pole

Size:

143 MM,183 MM,311 MM

Sub Brand:

LC3D,TESYS,TESYS D

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA. FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 4-50 MMA. SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 4-25 MMA. SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA. FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA. FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA. FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA. SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA. SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 4-50 MMA. FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 4-25 MMA. FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 4-50 MMA. FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 4-16 MMA. FLEXIBLE WITH CABLE END

Type:

STAR DELTA STARTER

Voltage:

17 Volt SIGNALLING CIRCUIT,POWER CIRCUIT <= 690 Volt AC 25...400 HZ

Widths:

311 mm

SoneparProductId:

SKU_US_315946475
