Square-D / Schneider - SQUARED LP1K09013BD Contactor, TeSy

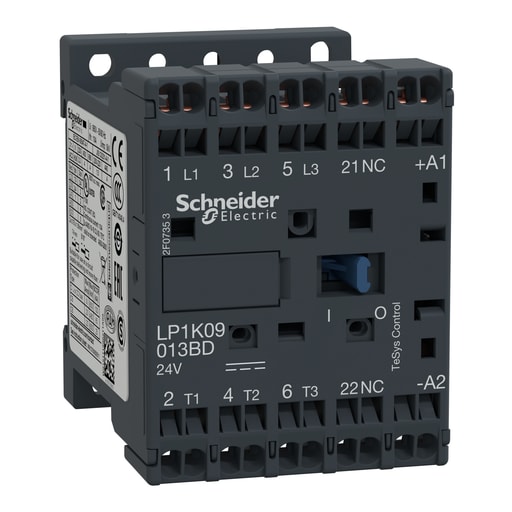

LP1K09013BD is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications 9A AC-3 4kW@400V. It provides a 24V DC coil, 1NC auxiliary contact and connections by spring terminals. LP1K09013BD is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, it provides a 24V DC coil, 1NC built-in auxiliary contact and connections by spring terminals. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Equipped with a 24V DC coil and 1NC built-in auxiliary contact for easy integration to all control systems. Model with spring terminals for fast wiring and lasting contact quality. Optimized for simple power applications. Can be added with clip-on auxiliary contact blocks with spring terminals (LA1KN.3) and clip-on suppressor modules with LED indicator (LA4K.). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA4KE1B; LA4KC1B; LA9D90; LA1KN403; LA1KN223; LA1KN113; LA1KN313; LA2KT2E; LA4KC2B - Cross Sell Products: GV2ME143
