Square-D / Schneider - SQUARED LR3D01 Thermal overload rel

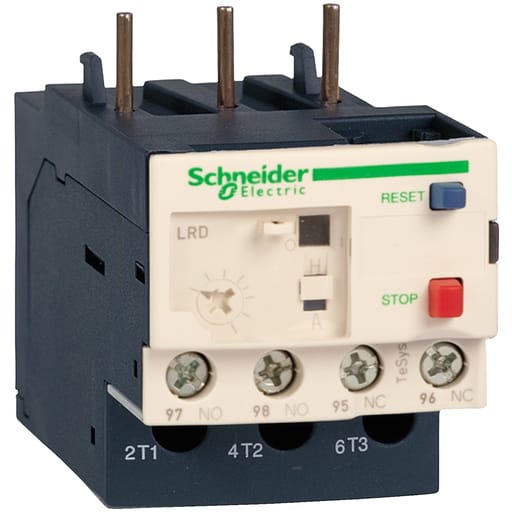

LR3D01 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors less than 0.06kW@400V thanks to a thermal range 0.10-0.16A , a tripping class 10A, for use with unbalanced loads. LR3D01 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 0.10-0.16A and tripping class 10A, it protects unbalanced loads and motors less than 0.06kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, for use with unbalanced loads (non differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D09-D38 to form a compact starter. Light and compact, 45mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAD7B106; LAD703F; LAD703M; LAD7C1; LAD7305; XB5AL84101; XB5AA86102 - Cross Sell Products: LC1D09M7; LC1D09P7; LC1D09B7; GV2L03
