Square-D / Schneider - SQUARED LV426823 Pre-wired undervol
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606485412934
Actuator - N/A
Applications - UNDERVOLTAGE TRIP RELEASE (MN)
Catalog Number - LV426823
Country of Origin - France
Packaging
1 ea
EAN
03606485412931
Part #
411254
Catalog #
LV426823
Commercial reference
LV426823
12-Digit UPC:
606485412934
Actuator:
N/A
Applications:
UNDERVOLTAGE TRIP RELEASE (MN)
Catalog Number:
LV426823
Country of Origin:
France
ERP_productname:
SQD LV426823 PRE-WIRED UNDERVOLTAGE RELEASE MN, COMPACT NSXM, 125VDC, 110/130VAC 50/60HZ
Enclosure:
N/A
Family Brand Name:
Schneider Electric
Frame:
N/A
Length:
1 m
Mounting Type:
Clip-On
Sub Brand:
SQUARE D
Tc Connection:
N/A
Trip Type:
N/A
Type:
ACCESSORY
Voltage:
125 VAC//VDC
SoneparProductId:
SKU_US_215328809

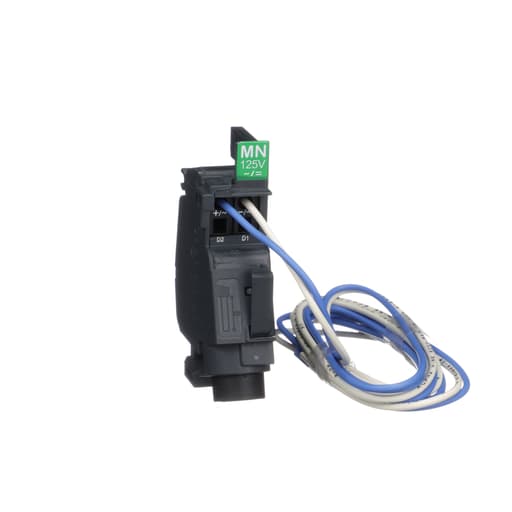

This pre-wired MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 110/130 VAC 50/60 Hz or 125 VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
