Square-D / Schneider - SQUARED LV426861 Pre-wired shunt tr
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606485413177
Actuator - N/A
Applications - SHUNT TRIP (MX)
Catalog Number - LV426861
Country of Origin - France
Packaging
1 ea
EAN
03606485413174
Part #
220525
Catalog #
LV426861
Commercial reference
LV426861
12-Digit UPC:
606485413177
Actuator:
N/A
Applications:
SHUNT TRIP (MX)
Catalog Number:
LV426861
Country of Origin:
France
ERP_productname:
SQD LV426861 CIRCUIT BRKR SHUNT TRIP 24V AC/DC WIRED
Enclosure:
N/A
Family Brand Name:
Schneider Electric
Frame:
N/A
Length:
1 m
Mounting Type:
Clip-On
Sub Brand:
SQUARE D
Tc Connection:
N/A
Trip Type:
N/A
Type:
ACCESSORY
Voltage:
24 VAC//VDC
SoneparProductId:
SKU_US_31665127

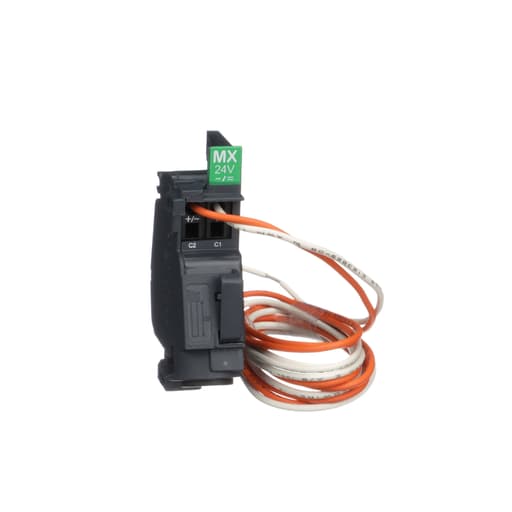

This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
