Square-D / Schneider - SQUARED LV426952 pre-wired auxiliar
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901087878
Actuator - N/A
Applications - ALARM SWITCH
Catalog Number - LV426952
Country of Origin - China
Packaging
1 ea
EAN
03606485444239
Part #
357403
Catalog #
LV426952
Commercial reference
LV426952
12-Digit UPC:
785901087878
Actuator:
N/A
Applications:
ALARM SWITCH
Catalog Number:
LV426952
Country of Origin:
China
ERP_productname:

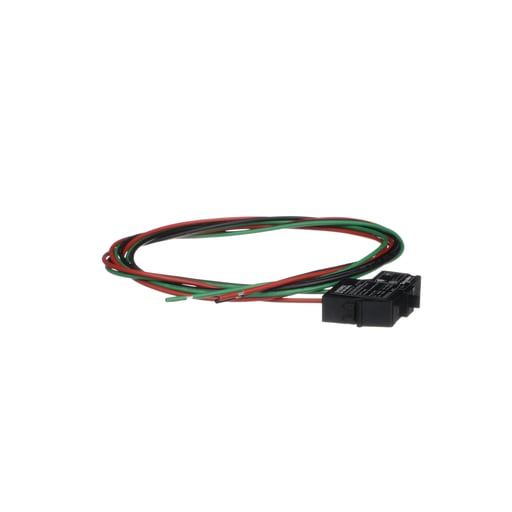

SQD LV426952 PRE-WIRED AUXILIARY CONTACT, COMPACT NSXM, CIRCUIT BREAKER STATUS SD, AWG18 WIRE 1 M LONG, 1 CHANGEOVER CONTACT TYPE
Enclosure:
N/A
Family Brand Name:
Schneider Electric
Frame:
N/A
Mounting Type:
Clip-On
Sub Brand:
SQUARE D
Tc Connection:
N/A
Trip Type:
N/A
Type:
ACCESSORY
SoneparProductId:
SKU_US_75226304
It is a pre-wired auxiliary contact that provides remote information of the circuit breaker status. It is used on Compact NSXm and PowerPact B devices. SD contact indicates that the circuit breaker has tripped. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 2mA at 17 VDC. Utilization categories are AC12/AC13/DC12/DC13/DC14. Compact NSXm embeds 2 auxiliary contacts and their presence is visible on the front face through green flags. It complies with IEC 60947-5-1 standard.
