Square-D / Schneider - SQUARED RE17LAMWS Modular timing re
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901806875
Catalog Number - RE17LAMWS
Depths - 72 mm
ERP_productname - SQD RE17LAMWS HARMONY, MODULAR TIMING RELAY, 0.7 A, 1 CO, 1 S..100 H, ON DELAY, SOLID STATE OUTPUT, SPRING TERMINALS, 24..240 V AC/DC
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606489861520
Part #
255845
Catalog #
RE17LAMWS
Commercial reference
RE17LAMWS
12-Digit UPC:
785901806875
Catalog Number:
RE17LAMWS
Depths:
72 mm
ERP_productname:
SQD RE17LAMWS HARMONY, MODULAR TIMING RELAY, 0.7 A, 1 CO, 1 S..100 H, ON DELAY, SOLID STATE OUTPUT, SPRING TERMINALS, 24..240 V AC/DC
Family Brand Name:
Schneider Electric
Heights:
90 mm
Widths:
17.5 mm
SoneparProductId:
SKU_US_340122601

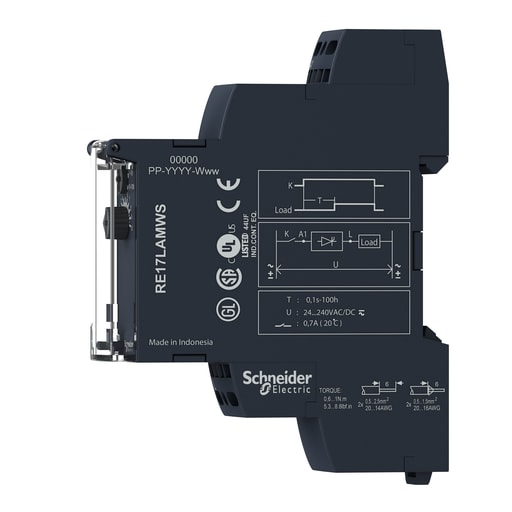

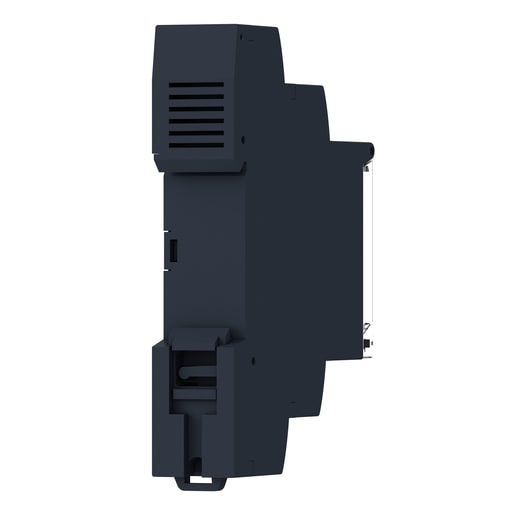

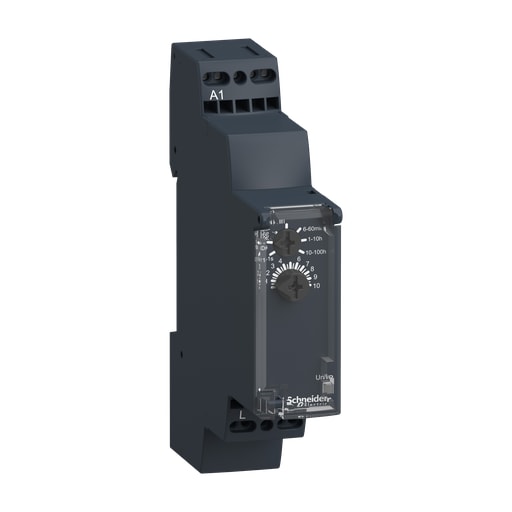

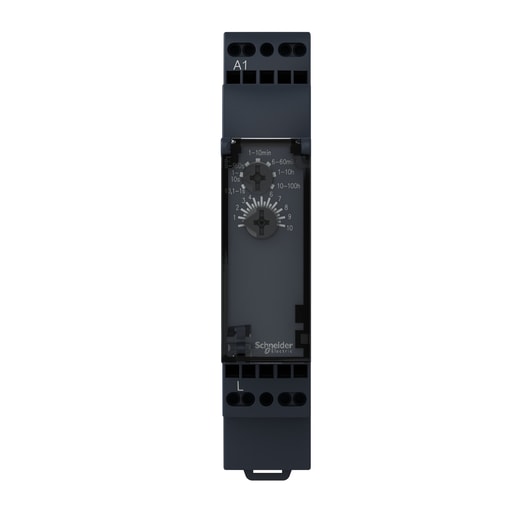

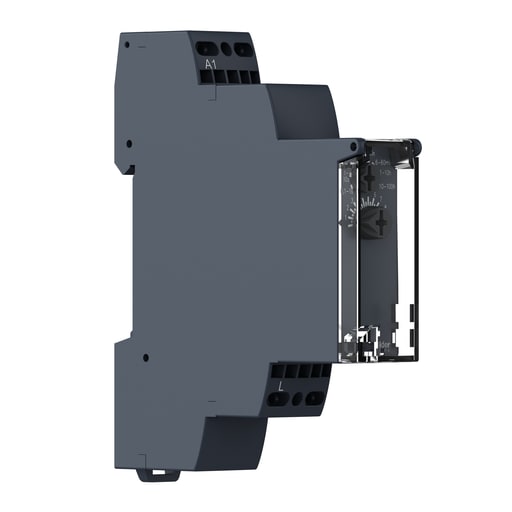

This modular timing relay belongs to the Schneider Electric Harmony Timer relays range. This is an on-delay timer with single function and starts when the power supply is present. This is a 17.5mm slim relay with either ac or dc input of 24V to 240V and solid state output of 0.7A. It has one of slimmest form-factors, allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. This is a spring terminal type relay with a sealable cover and rotary trimmers for simple and precise settings. It has 7 selectable timing ranges of 1s, 10s, 1min, 10min, 1h, 10h, and 100h and 2 dials for adjusting. It weighs 0.050Kg. 0 0 The product conforms to IEC 61812-1 and EN 61812-1 standards, and UL, CSA, GL, RCM, EAC, CCC, and China ROHS certifications. 0 0 0 The spring terminals timing relays bring you easy, time-saving and secured wiring during installation and maintenance. 0 0 0 0 0
