Square-D / Schneider - SQUARED RE17RLMUS dual function rel

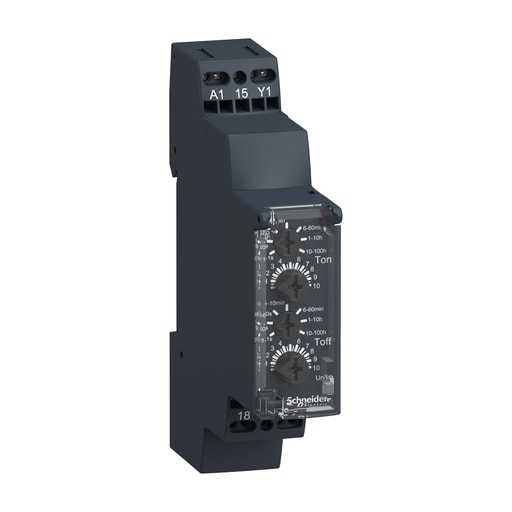

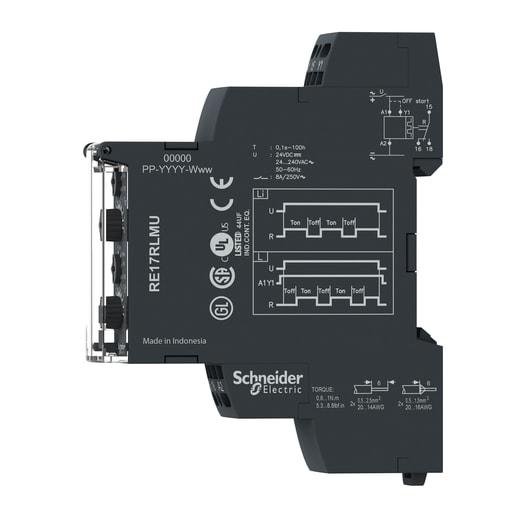

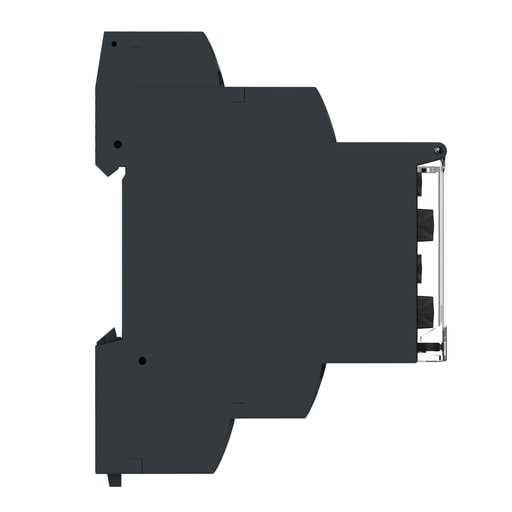

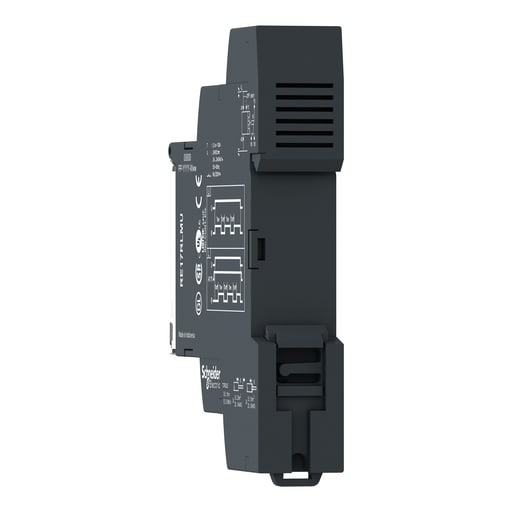

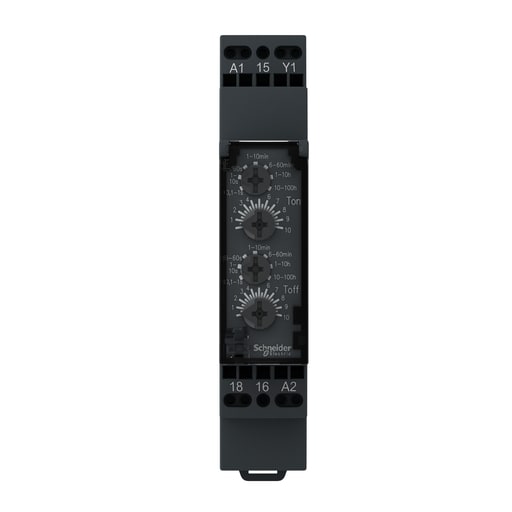

This modular timing relay belongs to the Schneider Electric Harmony Timer relays range. This is an asymmetrical flashing relay with dual function and is activated when the power is removed from the control input Y1. This is a 17.5mm slim relay with input of either 24Vdc or 24Vac to 240Vac and 1 relay output of 8A. It has one of slimmest form-factors, allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. This is a spring terminal type relay with a sealable cover and rotary trimmers for simple and precise settings. It has 7 selectable timing ranges of 1s, 10s, 1min, 10min, 1h, 10h, and 100h and 4 dials for adjusting. It weighs 0.060Kg. 0 0 The product conforms to IEC 61812-1 and EN 61812-1 standards, and UL, CSA, GL, RCM, EAC, CCC, and China ROHS certifications. 0 0 0 The spring terminals timing relays bring you easy, time-saving and secured wiring during installation and maintenance. 0 0 0 0 0 Cross Sell Products: RE17RAMUS; RE17RHMU; RE17RLMU
