Square-D / Schneider - SQUARED RE17RMMUS Harmony, Modular
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606489861653
Catalog Number - RE17RMMUS
Depths - 72 mm
ERP_productname - SQD RE17RMMUS HARMONY, MODULAR TIMING RELAY, 8 A, 1 CO, 1 S..100 H, MULTIFUNCTION, SPRING TERMINALS, 24 V DC / 24...240 V AC/DC
Family Brand Name - Schneider Electric
Packaging
1 ea
EAN
03606489861650
Part #
156989
Catalog #
RE17RMMUS
Commercial reference
RE17RMMUS
12-Digit UPC:
606489861653
Catalog Number:
RE17RMMUS
Depths:
72 mm
ERP_productname:
SQD RE17RMMUS HARMONY, MODULAR TIMING RELAY, 8 A, 1 CO, 1 S..100 H, MULTIFUNCTION, SPRING TERMINALS, 24 V DC / 24...240 V AC/DC
Family Brand Name:
Schneider Electric
Heights:
90 mm
Input Voltage:
10 V
Sub Brand:
RE17R
Widths:
17.5 mm
SoneparProductId:
SKU_US_247178677

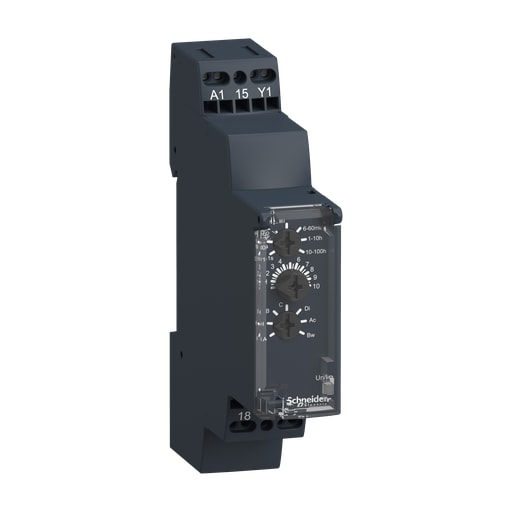

This modular timing relay belongs to the Schneider Electric Harmony Timer relays range. This is a timer delay relay with 10 multifunction's. This is a 17.5mm slim relay with input of either 24Vdc or 24Vac to 240Vac and 1 relay output of 8A, and a LED status indicator. It has one of slimmest form-factors, allowing for a flexible and easy installation on DIN rail using the same space as any modular 1-pole DIN device. This is a spring terminal type relay with a 3-wire sensor control option, sealable cover and rotary trimmers for simple and precise settings. It has 7 selectable timing ranges of 1s, 10s, 1min, 10min, 1h, 10h, and 100h and 2 dials for adjusting. It weighs 0.060Kg. 0 0 The product conforms to IEC 61812-1 and EN 61812-1 standards, and UL, CSA, GL, RCM, EAC, CCC, and China ROHS certifications. 0 0 0 The spring terminals timing relays bring you easy, time-saving and secured wiring during installation and maintenance. 0 0 0 0 0
