Square-D / Schneider - SQUARED RMCV60BD Isolated analog co

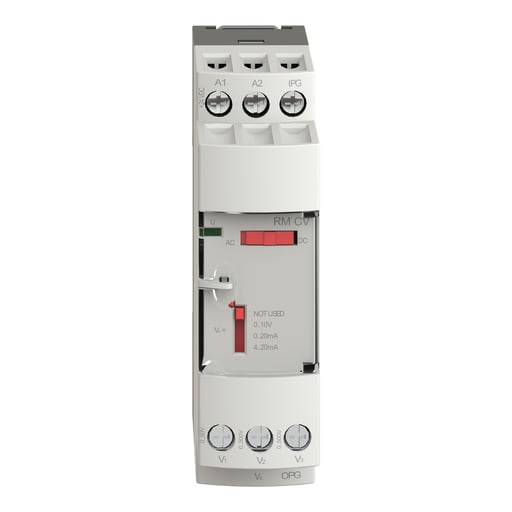

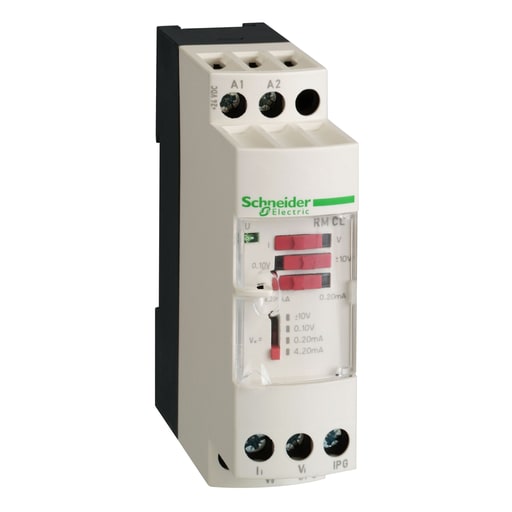

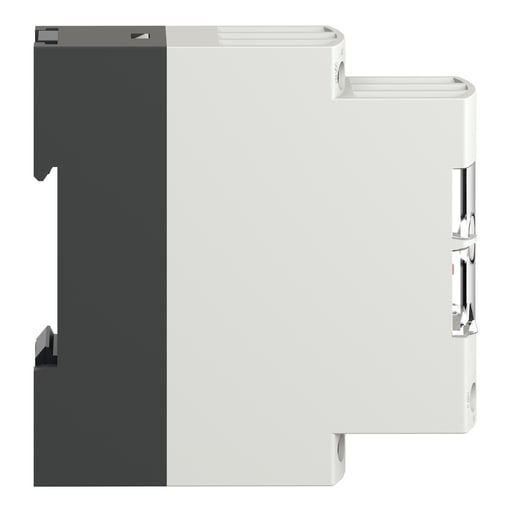

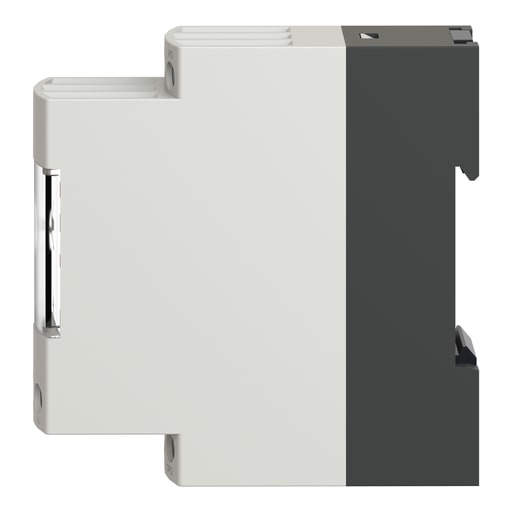

This voltage/current converter is part of the range of interfaces Harmony Analog. This cost effective converter converts a 0.50 V, 0.300 V, 0.500 V AC/DC signal to a switchable 0.10 V, . 10 V, 0.20 mA or 4.20 mA signal. Its supply voltage is 24V DC, isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. 0 0 It weighs 150g and its dimensions are, 25mm wide, 78mm high, 80mm deep. 0 0 Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 It can be mounted on 35mm DIN rail or fixed by screws on a mounting plate. 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: RMCL55BD; RMCN22BD; RMCA61BD
