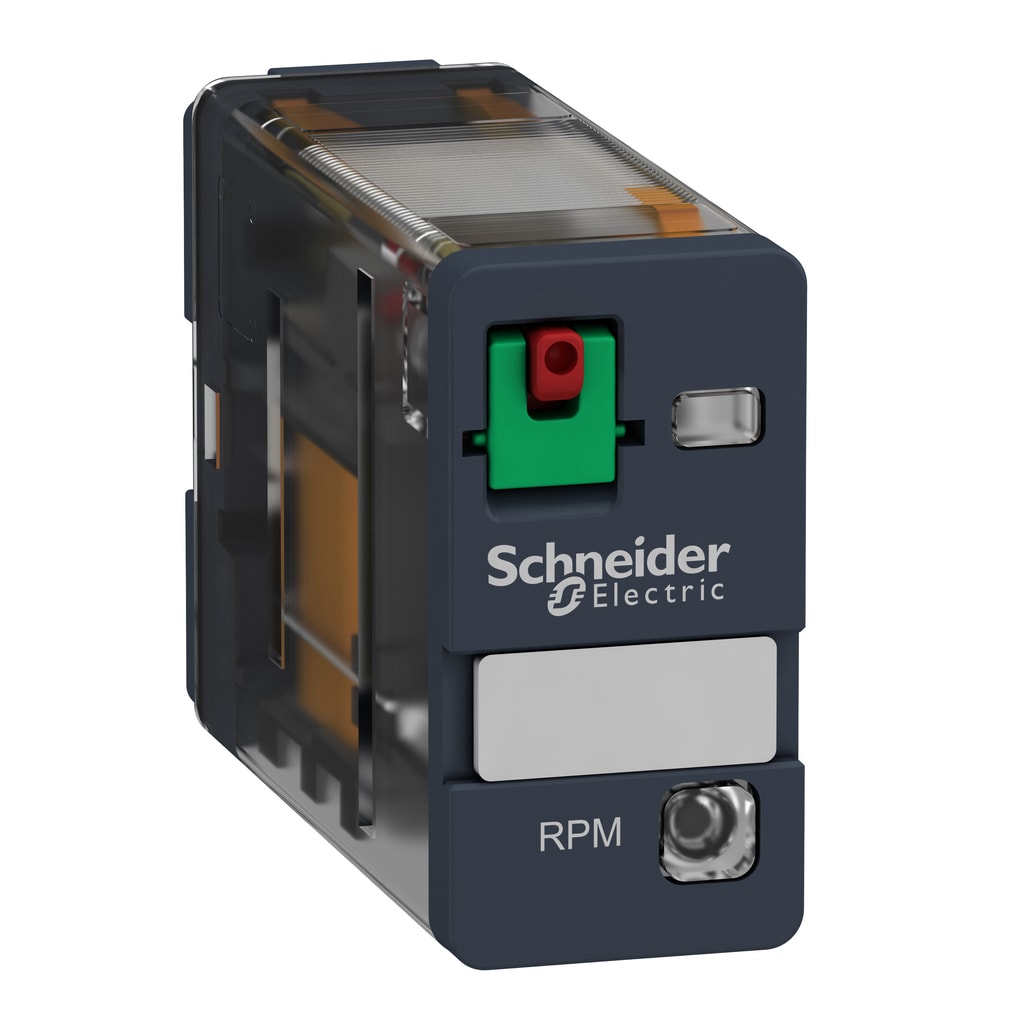

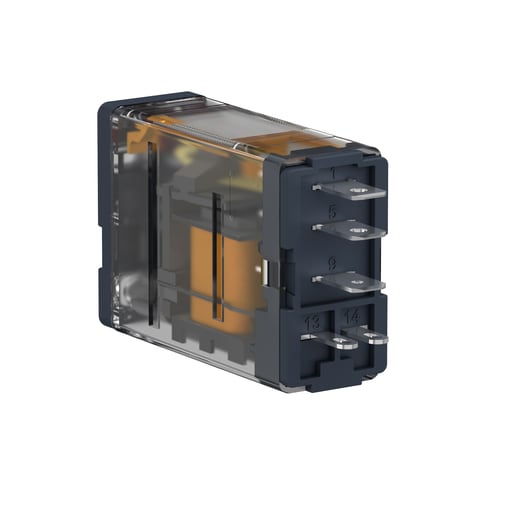

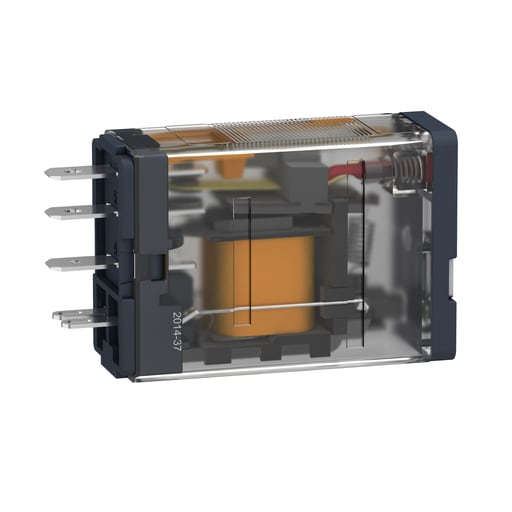

Square-D / Schneider - SQUARED RPM12E7 Power plug in relay

Essential specifications

12-Digit UPC - 389119401749
Amperage - 15 Amp 250 V AC-15 Amp 28 V DC,15 Amp 277 V AC) UL-15 Amp 28 V DC) UL-15 Amp 250 V AC) NO IEC-15 Amp 28 V DC) NO IEC-7.5 Amp 250 V AC) NC IEC-7.5 Amp 28 V DC) NC IEC
Catalog Number - RPM12E7
ERP_productname - SQD RPM12E7 PLUG-IN RELAY 250V 15A RPM +OPTIONS
Enclosure - IP40

Packaging

1 ea

EAN

03389119401746

Part #

195901

Catalog #

RPM12E7

Commercial reference

RPM12E7

12-Digit UPC:

389119401749

Amperage:

15 Amp 250 V AC-15 Amp 28 V DC,15 Amp 277 V AC) UL-15 Amp 28 V DC) UL-15 Amp 250 V AC) NO IEC-15 Amp 28 V DC) NO IEC-7.5 Amp 250 V AC) NC IEC-7.5 Amp 28 V DC) NC IEC

Catalog Number:

RPM12E7

ERP_productname:

SQD RPM12E7 PLUG-IN RELAY 250V 15A RPM +OPTIONS

Enclosure:

IP40

Family Brand Name:

Schneider Electric

Sub Brand:

ZELIO

Type:

Plug-in relay;Flat

SoneparProductId:

SKU_US_315759202

This Harmony RPM power plug-in relay has a coil control voltage of 48V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0
