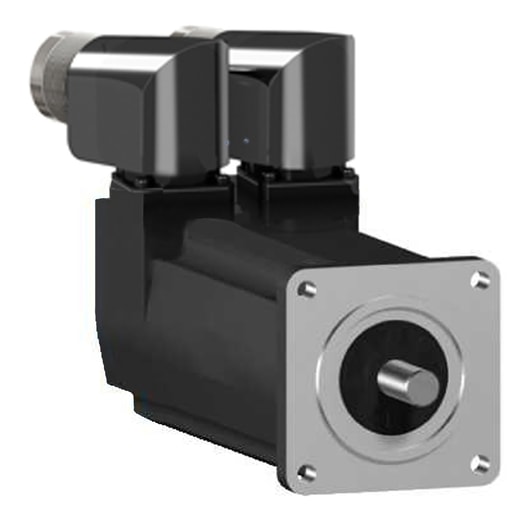

Square-D / Schneider - SQUARED SH30551P02F2000 servo motor

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 9000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 0.73A and a continuous power of 290W. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 and IP65 rated product. The length of this product is 159mm and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 63mm mounting hole. It weighs 1.3kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 55mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: VW3E1143R050; VW3E1143R100; VW3E1143R150; VW3E1143R250; VW3E2094R050; VW3E2094R100; VW3E2094R150; VW3E2094R250 - Cross Sell Products: GBK0600550F; LXM52DU60C41000; LXM62DU60C21000; LXM62DU60D21000; LXM62DU60E21000; LXM62DU60F21000
