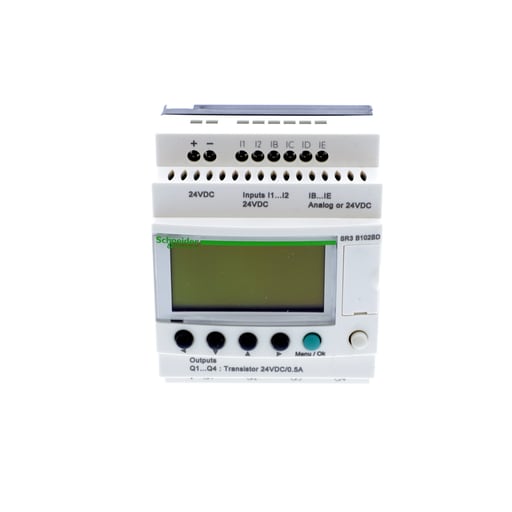

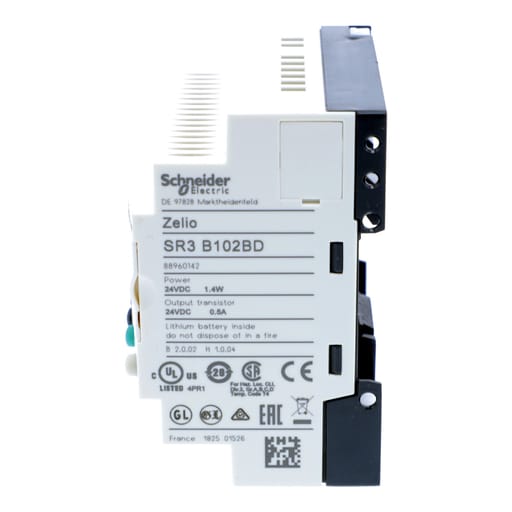

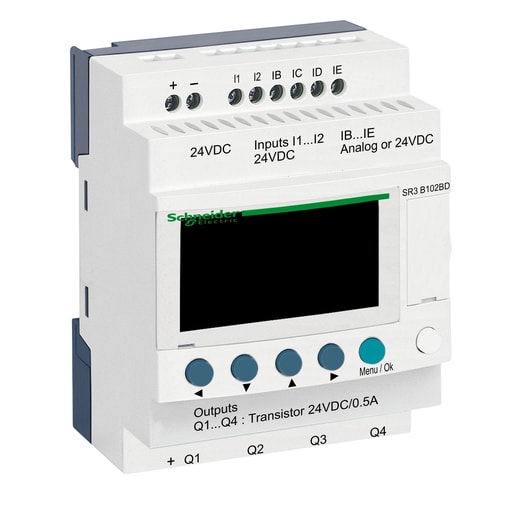

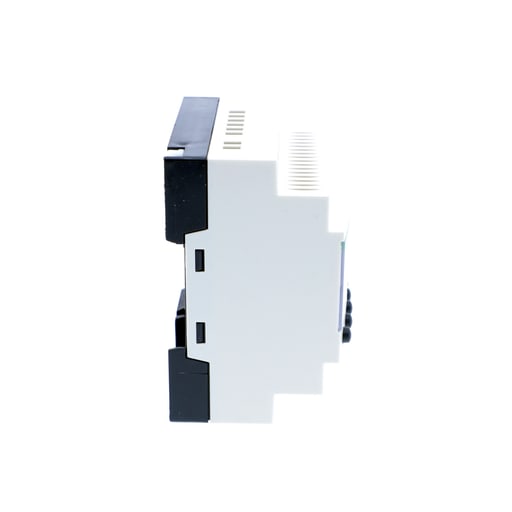

Square-D / Schneider - SQUARED SR3B102BD Modular smart rel

Essential specifications

12-Digit UPC - 785901571827
Amperage - 160 MA WITH EXTENSIONS)-50 MA WITHOUT EXTENSION)
Catalog Number - SR3B102BD
Country of Origin - France
ERP_productname - SQD SR3B102BD ZELIO SR3 10 I-O 24VDC, TRANSISTOR OUT

Packaging

1 ea

EAN

03389110549904

Part #

143096

Catalog #

SR3B102BD

Commercial reference

SR3B102BD

12-Digit UPC:

785901571827

Amperage:

160 MA WITH EXTENSIONS)-50 MA WITHOUT EXTENSION)

Catalog Number:

SR3B102BD

Country of Origin:

France

ERP_productname:

SQD SR3B102BD ZELIO SR3 10 I-O 24VDC, TRANSISTOR OUT

Enclosure:

IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529-IP40 (FRONT PANEL) CONFORMING TO IEC 60529

Family Brand Name:

Schneider Electric

Output Voltage:

24 V

Size:

MODULAR

Sub Brand:

ZELIO LOGIC 2

Tc Connection:

SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 25...AWG 14) SEMI-SOLID-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 25...AWG 14) SOLID-SCREW TERMINALS, 1 X 0.25...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA. AWG 24...AWG 16) SOLID-SCREW TERMINALS, 2 X 0.25...2 X 0.75 MMA. AWG 24...AWG 18) FLEXIBLE WITH CABLE END

Type:

MODULAR SMART RELAY

SoneparProductId:

SKU_US_29691195

This Schneider Electric Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24 volts direct current, has 10 inputs / outputs with screw-clamp terminals. It has an integrated clock and LCD display. This compact smart relays / programmable controller is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ESR2SFT01; SR2MEM02; TM1STNTCRN52015; SR2CBL01; SR2COM01; SR2USB01; TM1STNTCRN52030; TM1STNTCRN52050; TM1STNTCRN61515; TM1STNTCRN61530; TM1STNTCRN61550; TM1STNTCSF44015; TM1STNTCSF44030; TM1STNTCSN62015; TM1STNTCSN62030; TM1STNTCSN62050; TM1STNTCTN62015; TM1STNTCTN62030; TM1STNTCW69755; TM1STNTCWN75750 - Cross Sell Products: SR3XT43BD; SR3XT61BD; SR3XT101BD; SR3XT141BD
