Square-D / Schneider - SQUARED SSM1A130BD Harmony, Solid s

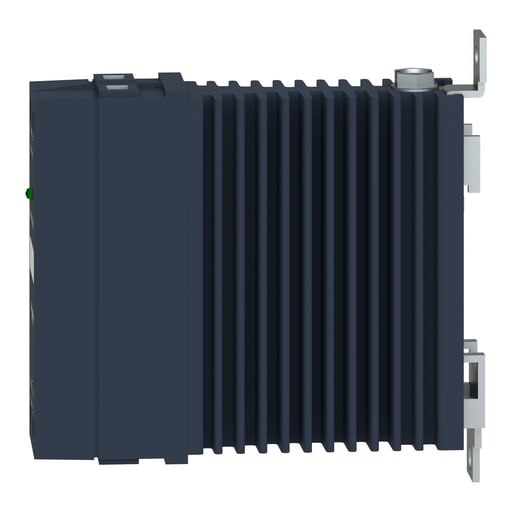

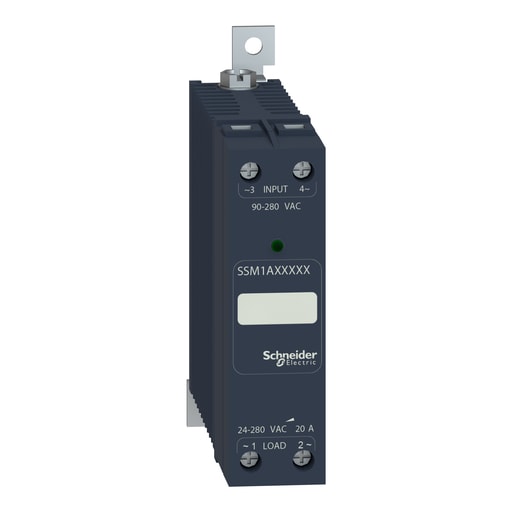

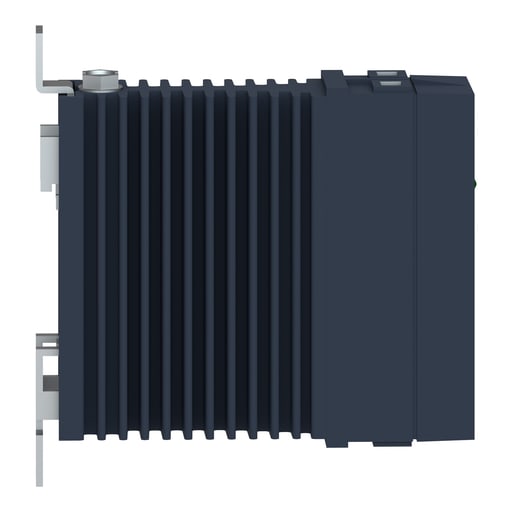

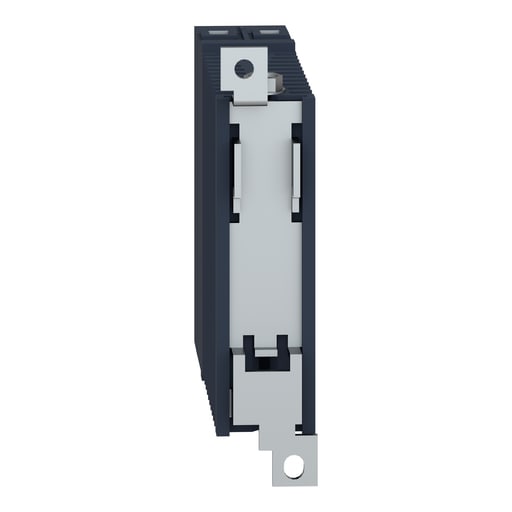

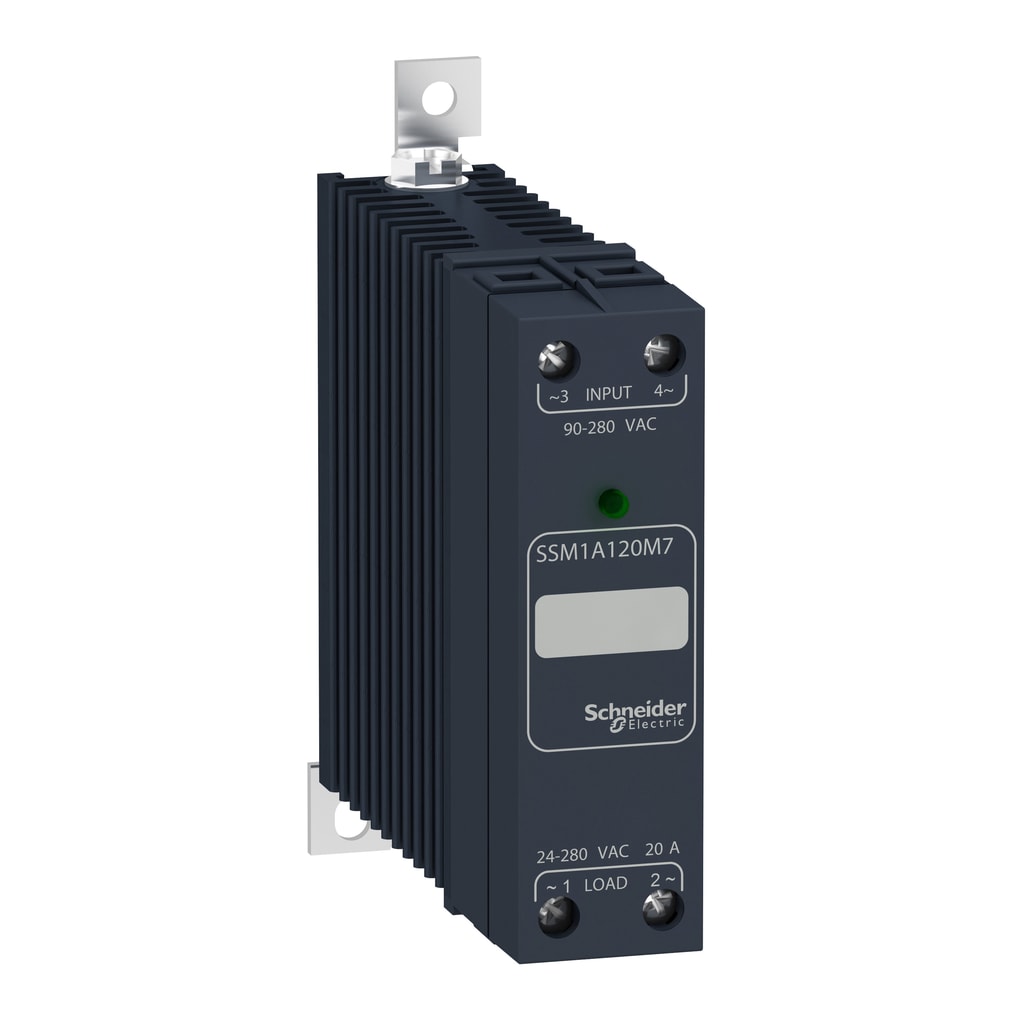

This solid state modular relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a single-phase 30A power rated relay with Zero voltage switching, ideal for resistive loads. It has a IP20 housing design and built-in heatsink for limited derating while limiting occupied space in panel. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 24Vac to 280Vac. It also has a control input voltage LED indicator in green. It weighs 0.280Kg and its dimensions are, 22.5mm wide, 98.8mm deep, 97.7mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like CSA C22.2 No 14, IEC 60950-1, and UL 508 and certifications like EAC, UL, and CSA. This Solid state relay range features compact modular design enabling easy mounting and reduced enclosure size.
