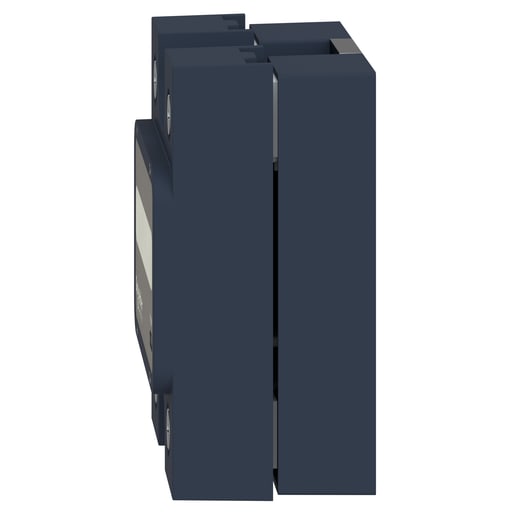

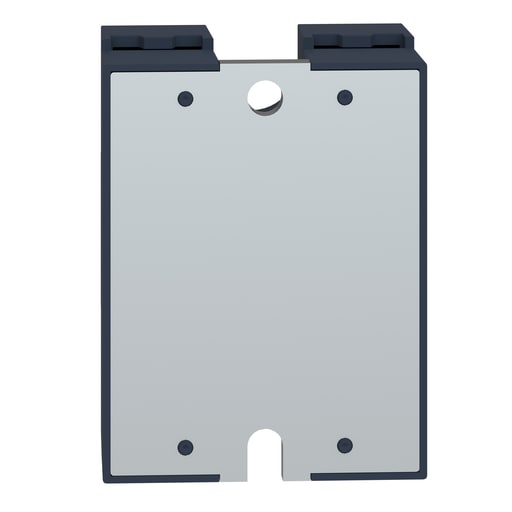

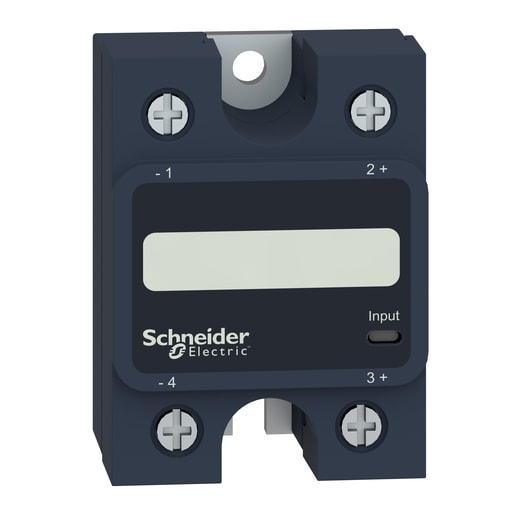

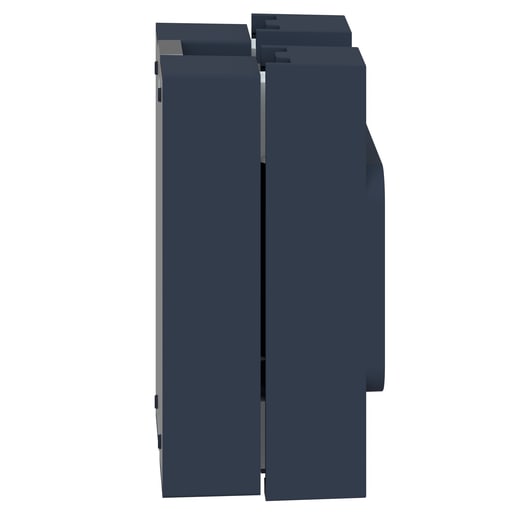

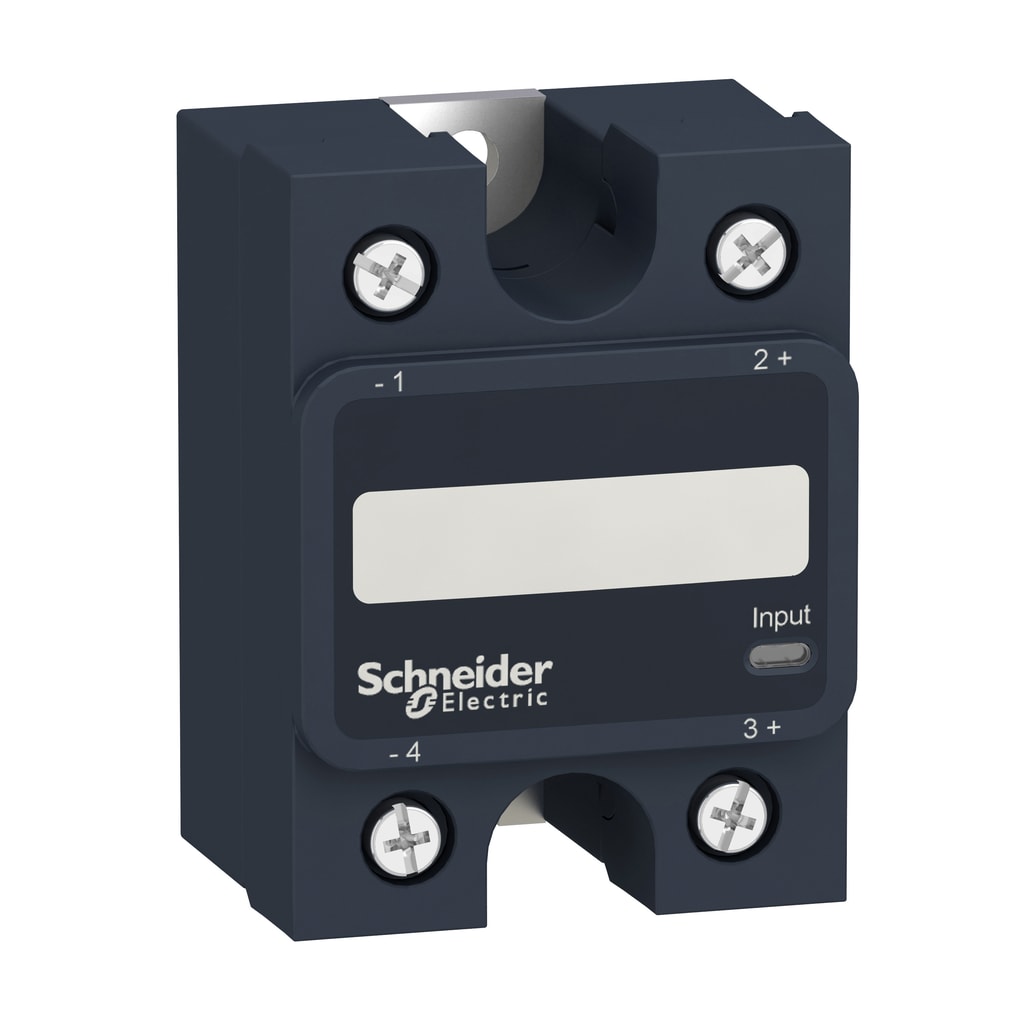

Square-D / Schneider - SQUARED SSP1A4125BD Solid state rel

12-Digit UPC:

606485441910

Amperage:

125 Amp

Applications:

2 HP 120 V AC-5 HP 240 V AC-10 HP 480 V AC

Catalog Number:

SSP1A4125BD

Country of Origin:

Mexico

ERP_productname:

SQD SSP1A4125BD SSR 1P PANEL MOUNT 125A@660VAC OUT ZC 4-

Family Brand Name:

Schneider Electric

Number of Phases:

1 Phase

Output Voltage:

48-660 V

Sub Brand:

SSP1

Tc Connection:

SCREW TERMINALS 0.2...3.3 MMA., AWG 24...AWG 12) WITH CABLE END INPUT-SCREW TERMINALS 0.5...5.26 MMA., AWG 20...AWG 10) WITH CABLE END OUTPUT-SCREW TERMINALS 0.2...3.3 MMA., AWG 24...AWG 12) WITHOUT CABLE END INPUT-SCREW TERMINALS 0.5...8.26 MMA., AWG 20...AWG 8) WITHOUT CABLE END OUTPUT-FORKED TYPE TAG CONNECTORS 9.2 X 4 MM INPUT-RING LUGS 9.2 X 4 MM INPUT-FORKED TYPE TAG CONNECTORS 11.7 X 4.5 MM OUTPUT-RING LUGS 11.7 X 4.5 MM OUTPUT

Type:

SOLID STATE RELAY

SoneparProductId:

SKU_US_75348973
