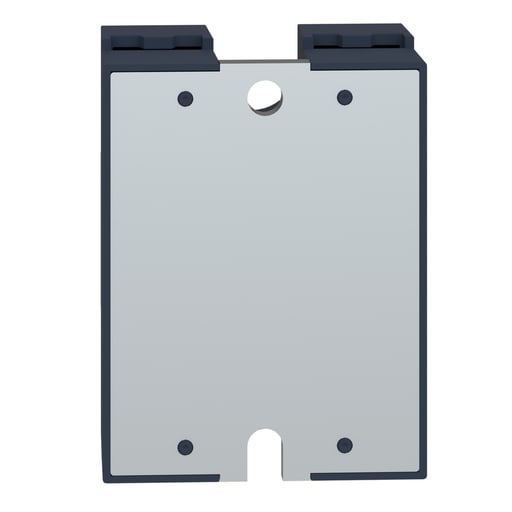

Square-D / Schneider - SQUARED SSP1A490BDT single phase pa

Essential specifications

12-Digit UPC - 606485442092
Amperage - 90 Amp
Applications - 1.5 HP 120 V AC-3 HP 240 V AC-7.5 HP 480 V AC
Catalog Number - SSP1A490BDT
Country of Origin - Mexico

Packaging

1 ea

EAN

03606485442099

Part #

367757

Catalog #

SSP1A490BDT

Commercial reference

SSP1A490BDT

12-Digit UPC:

606485442092

Amperage:

90 Amp

Applications:

1.5 HP 120 V AC-3 HP 240 V AC-7.5 HP 480 V AC

Catalog Number:

SSP1A490BDT

Country of Origin:

Mexico

ERP_productname:

SQD SSP1A490BDT SSR 1P PANEL MNT

Family Brand Name:

Schneider Electric

Number of Phases:

1 Phase

Output Voltage:

48-660 V

Sub Brand:

SSP1

Tc Connection:

SCREW TERMINALS 0.2...3.3 MMA., AWG 24...AWG 12) WITH CABLE END INPUT-SCREW TERMINALS 0.5...5.26 MMA., AWG 20...AWG 10) WITH CABLE END OUTPUT-SCREW TERMINALS 0.2...3.3 MMA., AWG 24...AWG 12) WITHOUT CABLE END INPUT-SCREW TERMINALS 0.5...8.26 MMA., AWG 20...AWG 8) WITHOUT CABLE END OUTPUT-FORKED TYPE TAG CONNECTORS 9.2 X 4 MM INPUT-RING LUGS 9.2 X 4 MM INPUT-FORKED TYPE TAG CONNECTORS 11.7 X 4.5 MM OUTPUT-RING LUGS 11.7 X 4.5 MM OUTPUT

Type:

Solid state relay

SoneparProductId:

SKU_US_192481617

This Harmony SSP solid state panel mount single-phase relay is rated 90A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: SSRHP05 - Cross Sell Products: SSP1A4125BDT; SSP1A490BD
