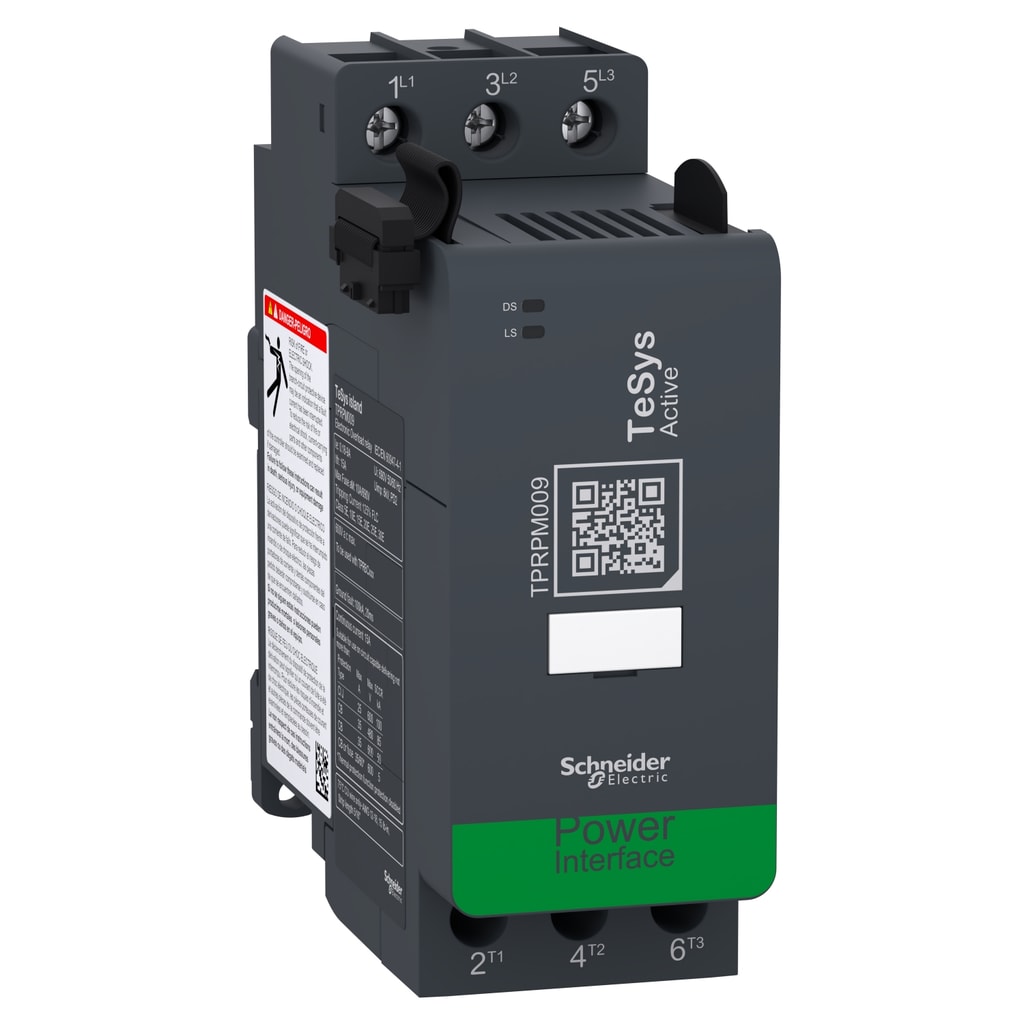

Square-D / Schneider - SQUARED TPRPM009 Power module, TeSy

TeSys island power module, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. External power switching devices could be controlled if associated to a digital IO module TPRDG4X2. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC). Compatible Products: TPRBCEIP; TPRBCPFB; TPRBCPFN - Cross Sell Products: GV2L03; GV2L04; GV2L05; GV2L06; GV2L07; GV2L08; GV2L10; GV2L14
