Square-D / Schneider - SQUARED TPRVM001 Voltage interface
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606489832882
Catalog Number - TPRVM001
Country of Origin - Mexico
Current - 2 mA
Depths - 114 mm
Packaging
1 ea
EAN
03606489832889
Part #
459394
Catalog #
TPRVM001
Commercial reference
TPRVM001
12-Digit UPC:
606489832882
Catalog Number:
TPRVM001
Country of Origin:
Mexico
Current:
2 mA
Depths:
114 mm
ERP_productname:
SQD TPRVM001 INTERFACE MOD
Family Brand Name:
Schneider Electric
Heights:
118 mm
Mounting Type:
Horizontal And Vertical 35 Mm Symmetrical Rail)
Widths:
25 mm
SoneparProductId:
SKU_US_245240421

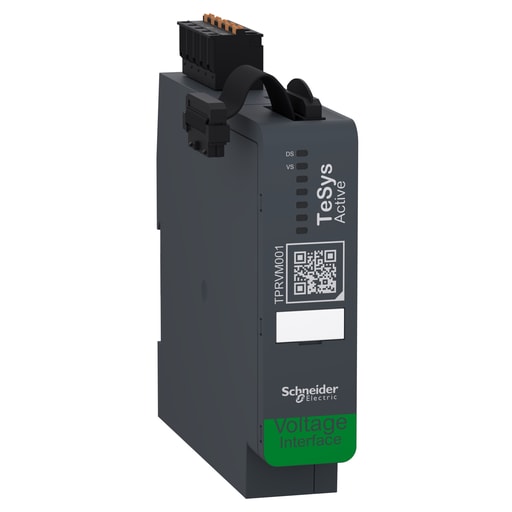

TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC). Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: TPRBCEIP; TPRBCPFB; TPRBCPFN
