Square-D / Schneider - SQUARED XACA481 Pendant control sta

Essential specifications

12-Digit UPC - 389110644848
Applications - Control circuit;Control of single speed hoist motor
Catalog Number - XACA481
Country of Origin - Mexico
ERP_productname - SQD XACA481 HARMONY XAC, PENDANT CONTROL STATION, PLASTIC, YELLOW, 4 PUSH BUTTONS

Packaging

1 ea

EAN

03389110644845

Part #

217276

Catalog #

XACA481

Commercial reference

XACA481

12-Digit UPC:

389110644848

Applications:

Control circuit;Control of single speed hoist motor

Catalog Number:

XACA481

Country of Origin:

Mexico

ERP_productname:

SQD XACA481 HARMONY XAC, PENDANT CONTROL STATION, PLASTIC, YELLOW, 4 PUSH BUTTONS

Enclosure:

IP65 IEC 60529

Enclosure Material:

Polypropylene

Enclosure Type:

Complete Ready For Use

Family Brand Name:

Schneider Electric

Tc Connection:

SCREW CLAMP TERMINALS, 1 X 0.5...1 X 2.5 MMA. WITHOUT CABLE END-SCREW CLAMP TERMINALS, 1 X 0.5...2 X 1.5 MMA. WITH CABLE END

Type:

Double insulated;Pendant control station

Wattage:

40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

SoneparProductId:

SKU_US_192631093

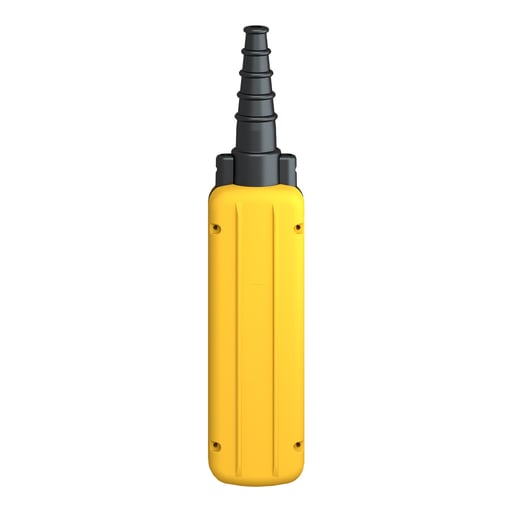

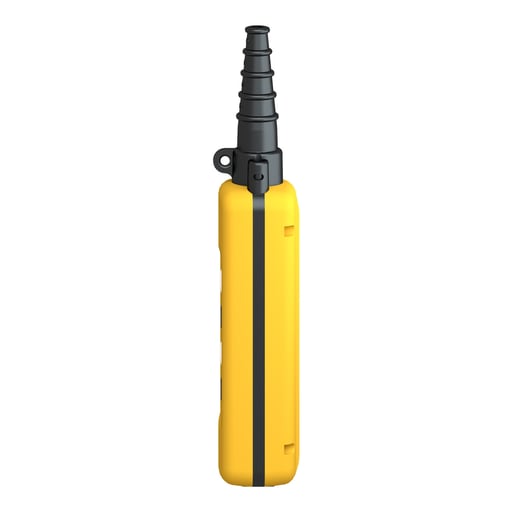

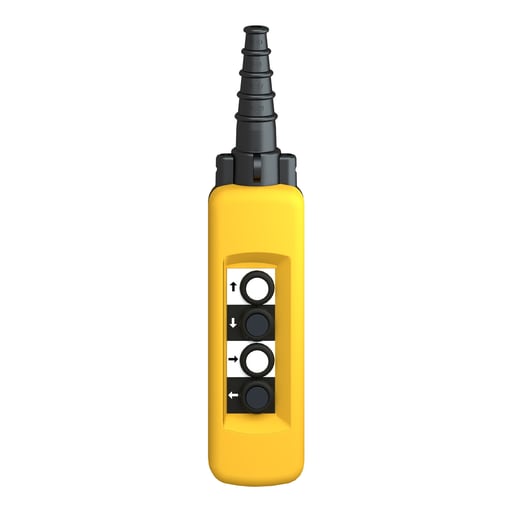

This yellow, complete ready to use, pendant station for control circuits is designed for control of single-speed motors. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a polypropyl.ne enclosure with 4 standard push buttons mechanically interlocked between pairs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XACA271; XACA471
