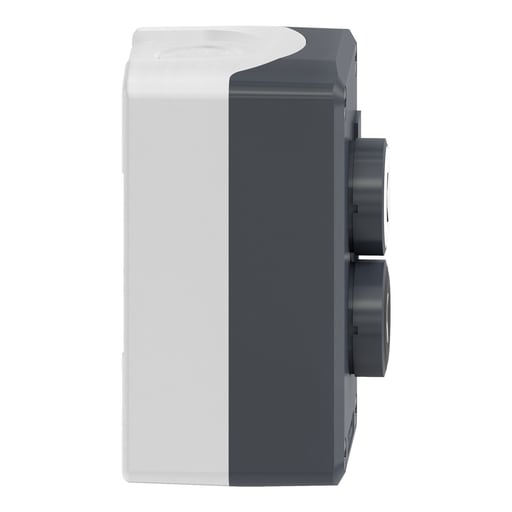

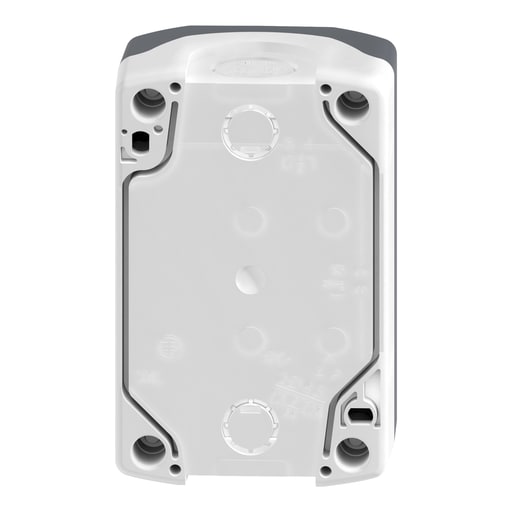

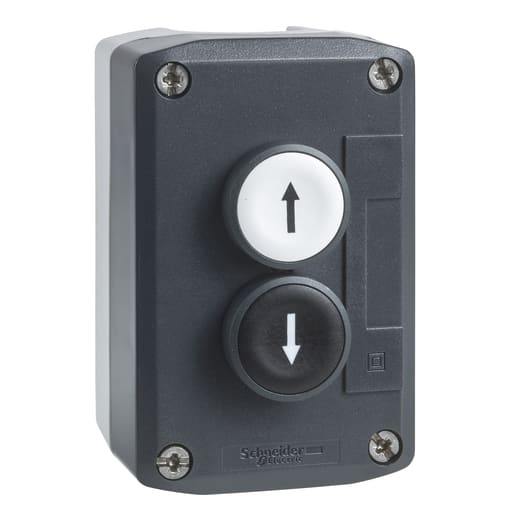

Square-D / Schneider - SQUARED XALD222 Control station, Ha
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901618690

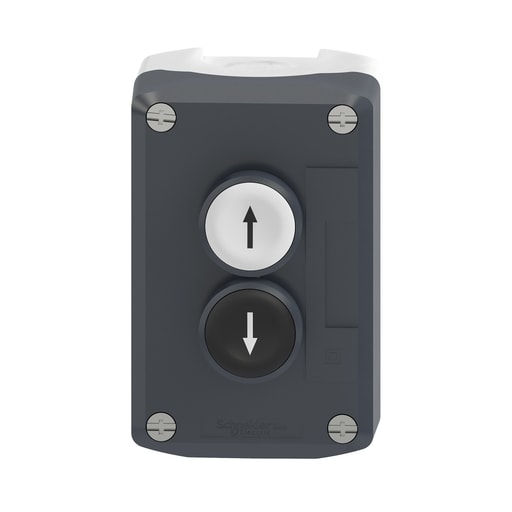

Actuator - White ''up arrow'' 1 NO - black ''down arrow'' 1 NO;2 flush push-buttons
Amperage - 6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications - For XB5 . 22 mm control and signalling units
Catalog Number - XALD222
Packaging
1 ea
EAN
03389110114164
Part #
201111
Catalog #
XALD222
Commercial reference
XALD222
12-Digit UPC:
785901618690
Actuator:
White ''up arrow'' 1 NO - black ''down arrow'' 1 NO;2 flush push-buttons
Amperage:
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications:
For XB5 . 22 mm control and signalling units
Catalog Number:
XALD222
Country of Origin:
France
ERP_productname:
SQD XALD222 CONTROL STATION, PLASTIC, DARK GREY LID, 2 FLUSH PUSH BUTTONS 22, MARKED UP ARROW DOWN ARROW, 2 NO
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Material:
Polycarbonate
Sub Brand:
XALD
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Complete control station
SoneparProductId:
SKU_US_29092950
