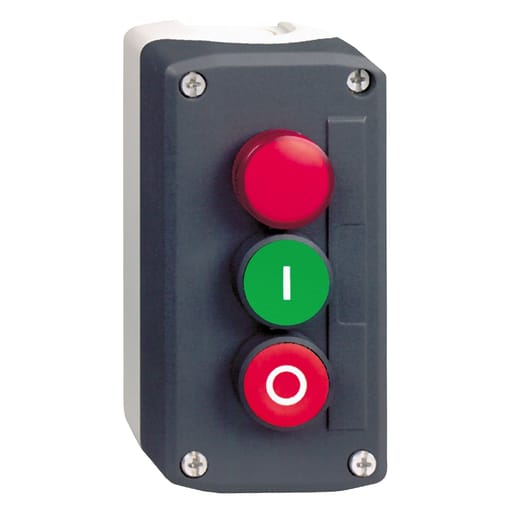

Square-D / Schneider - SQUARED XALD363G Complete control s
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110114501
Actuator - 1 FLUSH PUSH-BUTTON, GREEN 1 NO I-1 FLUSH PUSH-BUTTON, RED 1 NC O-1 PILOT LIGHT,2 FLUSH PUSH-BUTTONS - 1 CENTRAL PILOT LIGHT,GREEN ''I'' 1 NO - RED ''O'' 1 NC
Amperage - 6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications - FOR XB5 .. 22 MM CONTROL AND SIGNALLING UNITS
Catalog Number - XALD363G
Packaging
1 ea
EAN
03389110114508
Part #
344734
Catalog #
XALD363G
Commercial reference
XALD363G
12-Digit UPC:
389110114501
Actuator:
1 FLUSH PUSH-BUTTON, GREEN 1 NO I-1 FLUSH PUSH-BUTTON, RED 1 NC O-1 PILOT LIGHT,2 FLUSH PUSH-BUTTONS - 1 CENTRAL PILOT LIGHT,GREEN ''I'' 1 NO - RED ''O'' 1 NC
Amperage:
6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1
Applications:
FOR XB5 .. 22 MM CONTROL AND SIGNALLING UNITS
Catalog Number:
XALD363G
Country of Origin:
France
Current:
14 mA
ERP_productname:
SQD XALD363G COMPLETE CONTROL STATION, HARMONY XALD, DARK GREY GREEN FLUSH/RED FLUSH PUSHBUTTONS ?22 MM AND RED PILOT LIGHT
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Material:
Polycarbonate
Sub Brand:
XALD
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
COMPLETE CONTROL STATION
Voltage:
120 VAC
SoneparProductId:
SKU_US_73784849
