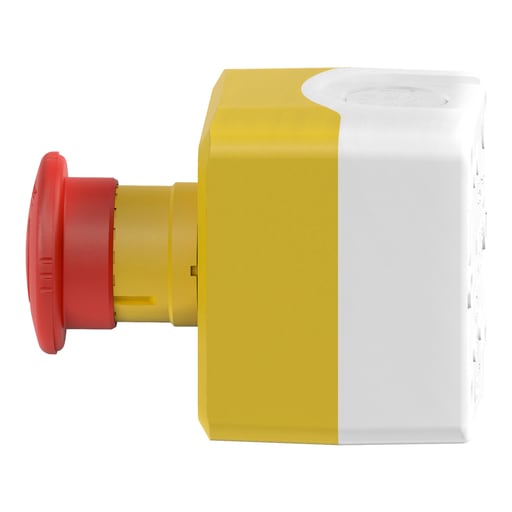

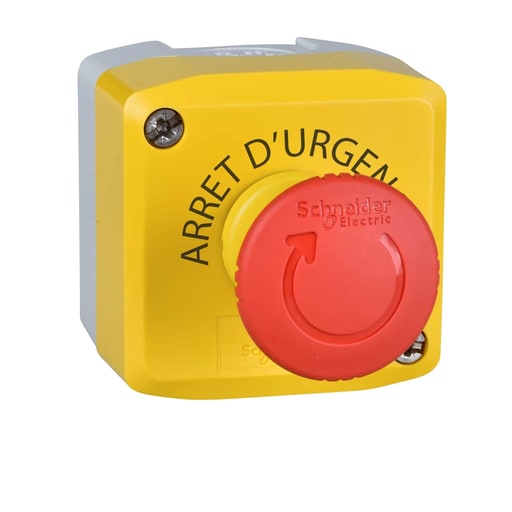

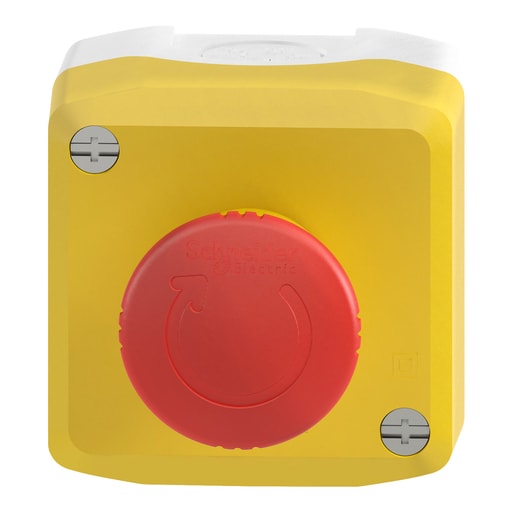

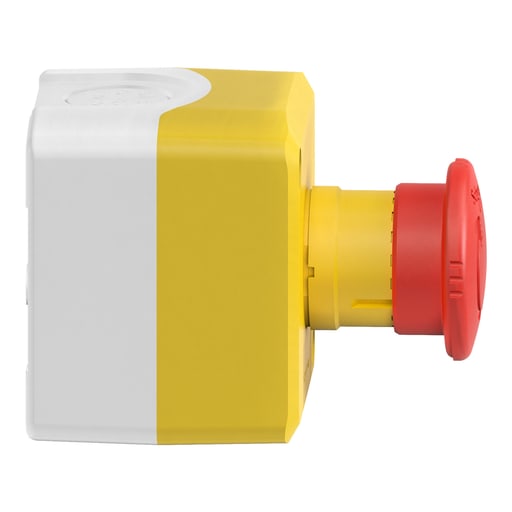

Square-D / Schneider - SQUARED XALK178G Control station, H
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110113689
Actuator - Red unmarked 1 NO + 2 NC;1 mushroom head push-button
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications - For XB5 . 22 mm control and signalling units
Catalog Number - XALK178G
Packaging
1 ea
EAN
03389110113686
Part #
166166
Catalog #
XALK178G
Commercial reference
XALK178G
12-Digit UPC:
389110113689
Actuator:
Red unmarked 1 NO + 2 NC;1 mushroom head push-button
Amperage:
3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Applications:
For XB5 . 22 mm control and signalling units
Catalog Number:
XALK178G
Country of Origin:
USA
ERP_productname:
SQD XALK178G PUSH BUTTON ENCLOSURE 600VAC 10A XALB SP
Enclosure:
NEMA 13-NEMA 4X
Family Brand Name:
Schneider Electric
Material:
Polycarbonate
Sub Brand:
XALK
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1
Type:
Complete control station
SoneparProductId:
SKU_US_30538460
