Square-D / Schneider - SQUARED XB4BK124G5 Illuminated sele

Essential specifications

12-Digit UPC - 389110892232
Actuator - 2 POSITIONS 90A.,RED STANDARD HANDLE,STAY PUT
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB4BK124G5
Country of Origin - France

Packaging

1 ea

EAN

03389110892239

Part #

133591

Catalog #

XB4BK124G5

Commercial reference

XB4BK124G5

12-Digit UPC:

389110892232

Actuator:

2 POSITIONS 90A.,RED STANDARD HANDLE,STAY PUT

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB4BK124G5

Country of Origin:

France

Current:

14 mA

Depths:

68 mm

ERP_productname:

SQD XB4BK124G5 SELECTOR SWITCH

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

47 mm

Size:

22 MM,30 MM,47 MM,68 MM

Sub Brand:

XB4

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

ILLUMINATED SELECTOR SWITCH

Voltage:

110...120 Volt AC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_297565799

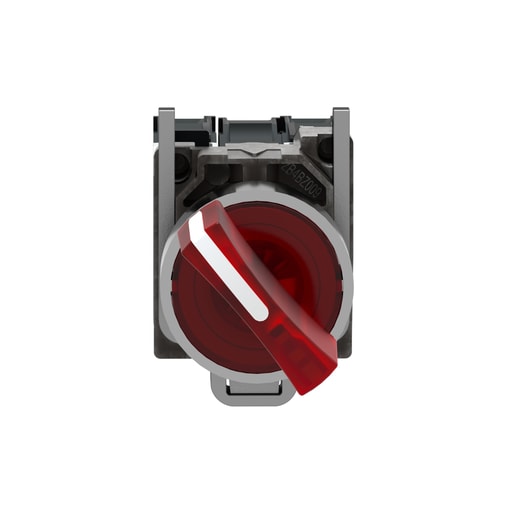

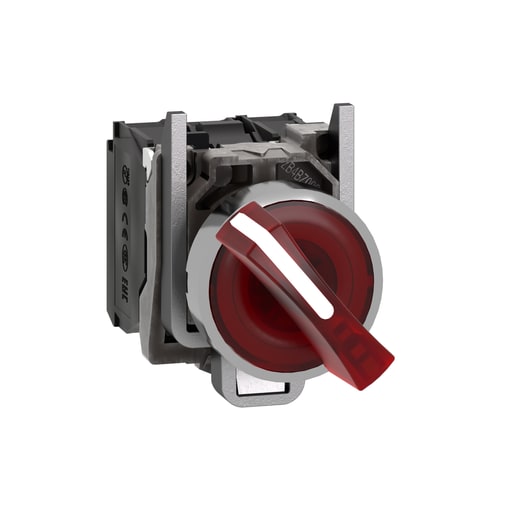

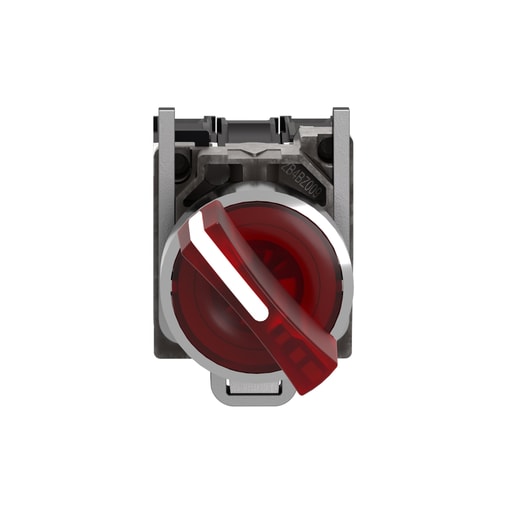

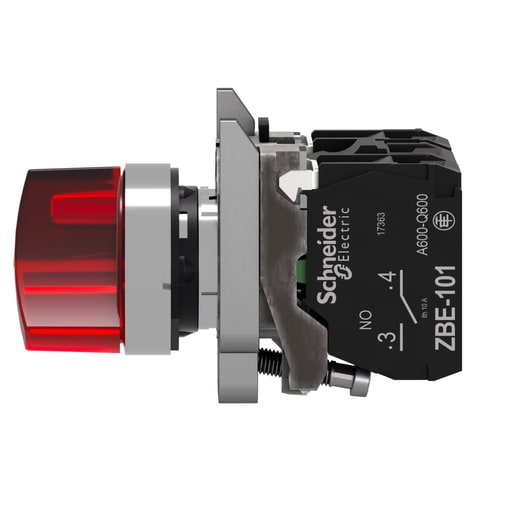

This Harmony XB4 illuminated modular red selector switch has 2 positions, operates with a stay-put mechanism, a 120V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBZ2102; ZBY2101 - Cross Sell Products: XAPD1501 - Spare Part Products: ZB4BW0G15; ZB4BK1243
