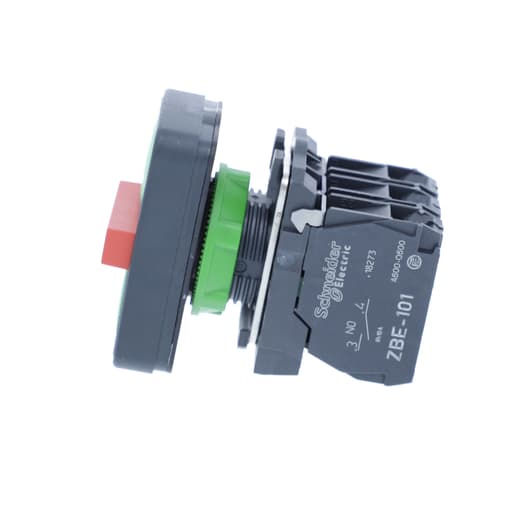

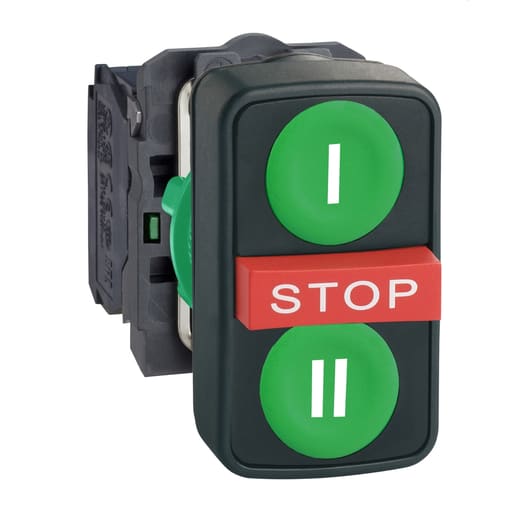

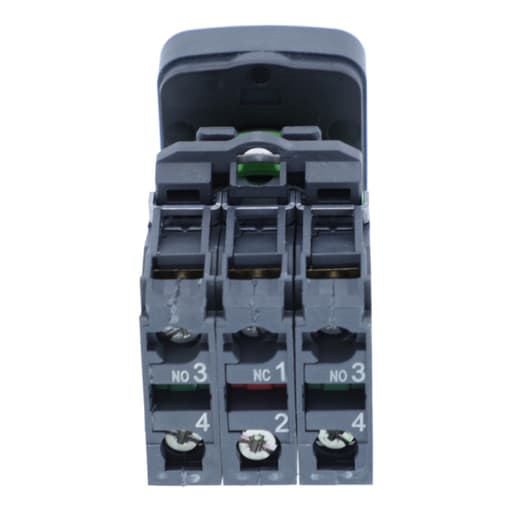

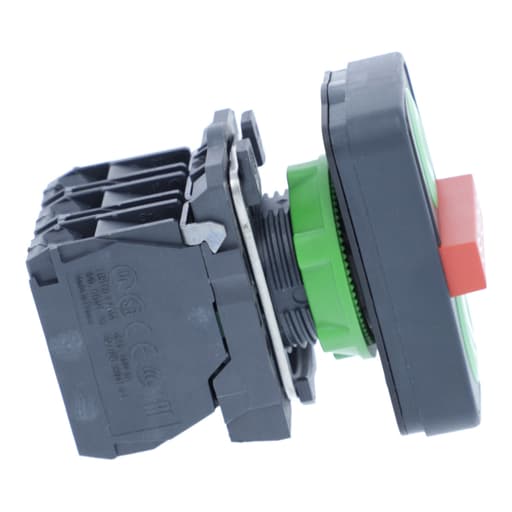

Square-D / Schneider - SQUARED XB5AA731327 Triple headed p

Essential specifications

12-Digit UPC - 785901680765
Actuator - Green ''I'' - green ''II'' - red ''STOP'';2 flush - 1 central projecting STOP push-buttons
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AA731327
Color - Red || Green

Packaging

1 ea

EAN

03389119043526

Part #

277427

Catalog #

XB5AA731327

Commercial reference

XB5AA731327

12-Digit UPC:

785901680765

Actuator:

Green ''I'' - green ''II'' - red ''STOP'';2 flush - 1 central projecting STOP push-buttons

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AA731327

Color:

Red || Green

Country of Origin:

France

ERP_productname:

SQD XB5AA731327 HARMONY XB5, TRIPLE-HEADED PUSH BUTTON, PLASTIC, ?22, MARKED, 1 GREEN FLUSH I + 1 RED PROJECTING STOP + 1 GREEN FLUSH II, 2 NO + 1 NC

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

50 mm

Size:

0.87 in

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1-SPRING TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SPRING TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Triple-headed push-button

Widths:

30 mm

SoneparProductId:

SKU_US_30299483

This Harmony XB5, triple-headed modular push button has 1 red and 2 green buttons, operates with a spring return mechanism and uses screw clamp terminals. It is marked with "I", "STOP" and "II" symbols. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB5AZ905; ZBYLEG503001; ZBA709 - Cross Sell Products: NSYPLM43G; XALK84W3BE - Spare Part Products: ZB5AZ105; ZBE101; ZB5AZ009
