Square-D / Schneider - SQUARED XB5AW73731B5 Illuminated do

Essential specifications

12-Digit UPC - 785901965572
Actuator - Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons - 1 central pilot light
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - XB5AW73731B5
Color - Green || Red

Packaging

1 ea

EAN

03389119043540

Part #

215156

Catalog #

XB5AW73731B5

Commercial reference

XB5AW73731B5

12-Digit UPC:

785901965572

Actuator:

Green ''I'' - red ''O'';1 flush - 1 projecting push-buttons - 1 central pilot light

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

XB5AW73731B5

Color:

Green || Red

Country of Origin:

France

Current:

18 mA

Depths:

59 mm

ERP_productname:

SQD XB5AW73731B5 PLASTIC ILLUM FLUSH/PROJ TWO BUTTON COMPLETE G

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

50 mm

Size:

2.32 in

Sub Brand:

XB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1-SPRING TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN/IEC 60947-1-SPRING TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN/IEC 60947-1

Type:

Illuminated double-headed push-button

Voltage:

24 Volt AC/DC 50/60 HZ

Widths:

30 mm

SoneparProductId:

SKU_US_32273176

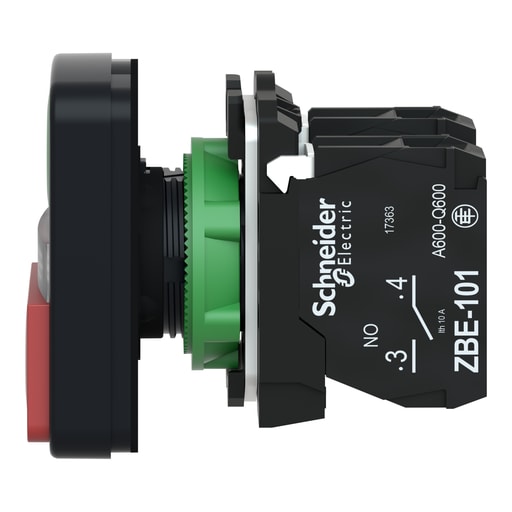

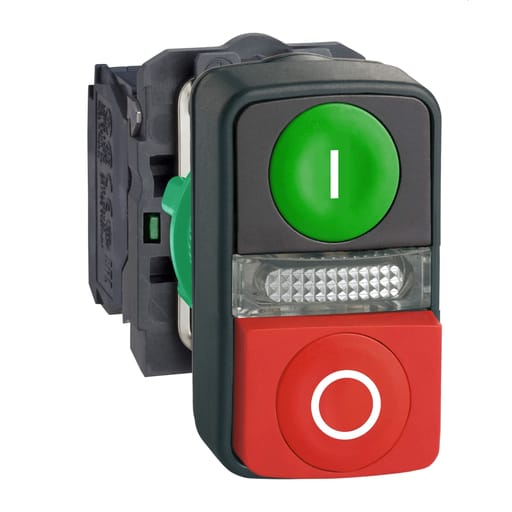

This Harmony XB5, double-headed modular push button has 1 red, 1 green button and 1 central white pilot light, operates with a spring return mechanism, is supplied with 24V AC/DC and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZBY2101; ZB5AZ905 - Spare Part Products: ZB5AZ009; ZBVB1; ZB5AW7L3741
