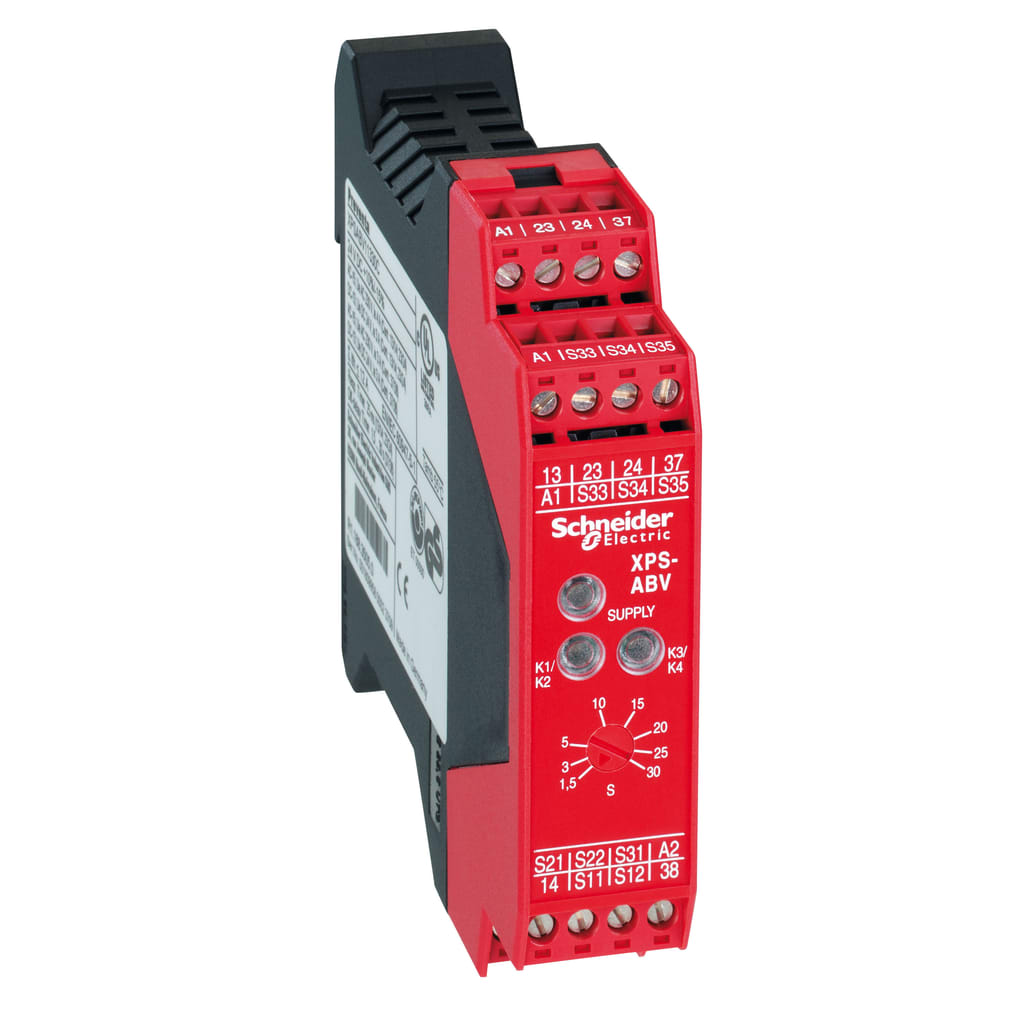

Square-D / Schneider - SQUARED XPSABV1133P module XPSABV -

12-Digit UPC:

785901452430

Applications:

For emergency stop and switch monitoring

Catalog Number:

XPSABV1133P

ERP_productname:

SQD XPSABV1133P SAFETY RELAY FOR E-STOP, GUARDS, 24 VDC

Enclosure:

IP20 CONFORMING TO EN/IEC 60529, IP40 CONFORMING TO EN/IEC 60529

Family Brand Name:

Telemecanique

Sub Brand:

PREVENTA

Tc Connection:

CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA. SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.2...1 X 2.5 MMA. FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 2.5 MMA. FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 1 X 0.25...1 X 1.5 MMA. FLEXIBLE WITH CABLE END, WITH BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA. SOLID WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.2...2 X 1 MMA. FLEXIBLE WITHOUT CABLE END-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.25...2 X 1 MMA. FLEXIBLE WITH CABLE END, WITHOUT BEZEL-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK, 2 X 0.5...2 X 1 MMA. FLEXIBLE WITH CABLE END, WITH DOUBLE BEZEL

Type:

Preventa safety module

SoneparProductId:

SKU_US_315897166
