Square-D / Schneider - SQUARED XPSBAT12A1AP safety module,

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901997443

  • Catalog Number - XPSBAT12A1AP

  • Country of Origin - Indonesia

  • Depths - 120 mm

  • ERP_productname - SQD XPSBAT12A1AP SAFETY RELAY

Packaging

  • 1 ea

EAN

03606482034044

Part #

329222

Catalog #

XPSBAT12A1AP

Commercial reference

XPSBAT12A1AP

12-Digit UPC:

785901997443

Catalog Number:

XPSBAT12A1AP

Country of Origin:

Indonesia

Depths:

120 mm

ERP_productname:

SQD XPSBAT12A1AP SAFETY RELAY

Family Brand Name:

Schneider Electric

Heights:

100 mm

Widths:

22.5 mm

SoneparProductId:

SKU_US_366105469

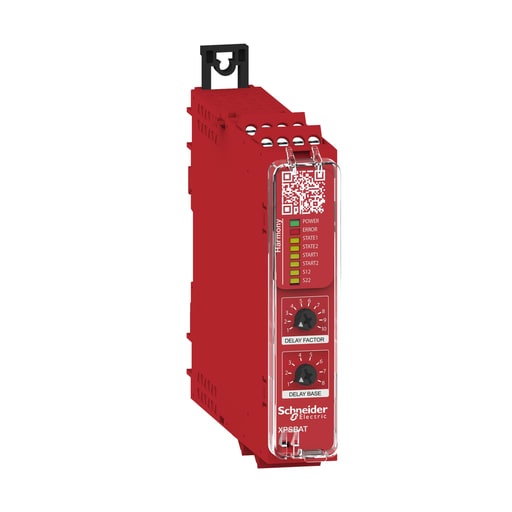

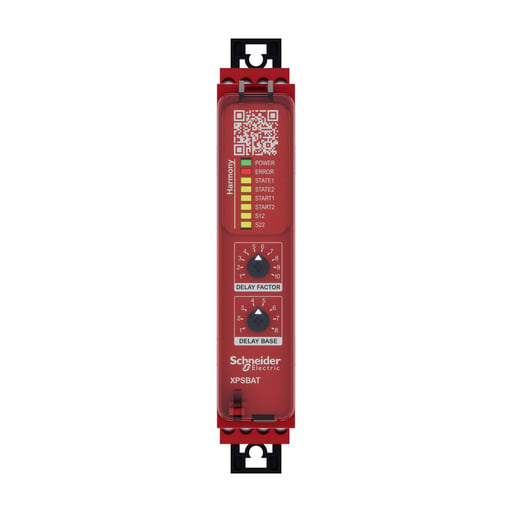

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, RFID safety switch and Safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 control outputs, 2 NO immediate, 3 NO configurable and 1 NC configurable safety output, 1 diagnostic output. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, T.V. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XPSEC; XPSES - Cross Sell Products: XPSUAT13A3AP
