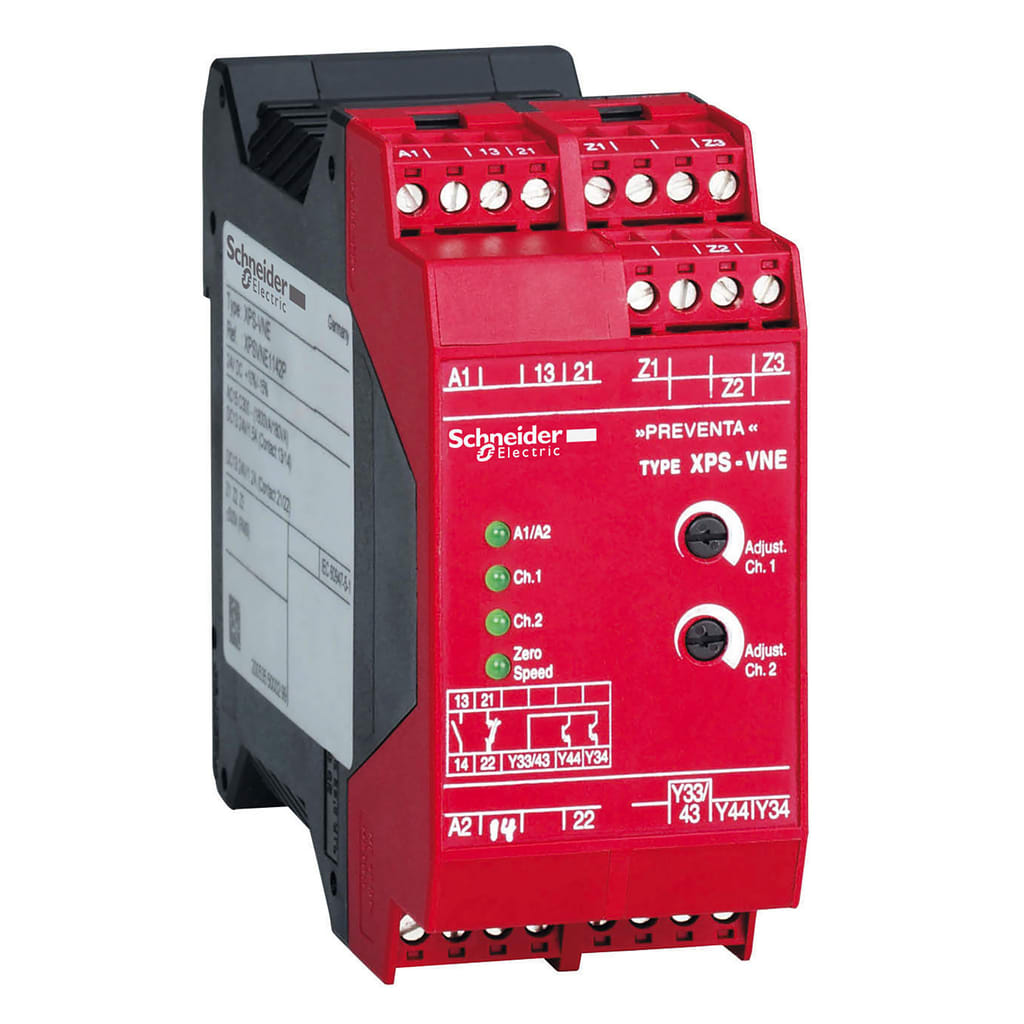

Square-D / Schneider - SQUARED XPSVNE1142HSP module XPSVN

12-Digit UPC:

389119010484

Applications:

Monitoring 3-phase motor + variable speed drive;Monitoring 3-phase motor;Monitoring XPS AK;Monitoring 3-phase motor with star-delta starting;Monitoring dc motor;Monitoring 3-phase motor with variable number of poles and star-delta starting;Monitoring star-delta motor starter and guard switch type XCS E;For zero speed detection

Catalog Number:

XPSVNE1142HSP

Country of Origin:

Indonesia

Depths:

114 mm

ERP_productname:

SQD XPSVNE1142HSP MODULE XPSVN - ZERO SPEED DETECTION - 24 V DC FOR MOTOR POWER SUPPLY > 60 HZ

Family Brand Name:

Telemecanique

Heights:

99 mm

Input Voltage:

500 V

Tc Connection:

CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.2...1.5 MMA. WITHOUT CABLE END, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.2...2.5 MMA. WITHOUT CABLE END, 1 WIRE-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.25...1 MMA. WITH CABLE END, WITHOUT BEZEL, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.25...2.5 MMA. WITH CABLE END, WITH BEZEL, 1 WIRE-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.25...2.5 MMA. WITH CABLE END, WITHOUT BEZEL, 1 WIRE-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK FLEXIBLE 0.5...1.5 MMA. WITH CABLE END, WITH DOUBLE BEZEL, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK SOLID 0.2...1 MMA. WITHOUT CABLE END, 2 WIRES-CAPTIVE SCREW CLAMP TERMINALS, REMOVABLE TERMINAL BLOCK SOLID 0.2...2.5 MMA. WITHOUT CABLE END, 1 WIRE

Type:

Preventa safety module

Widths:

45 mm

SoneparProductId:

SKU_US_29772609
