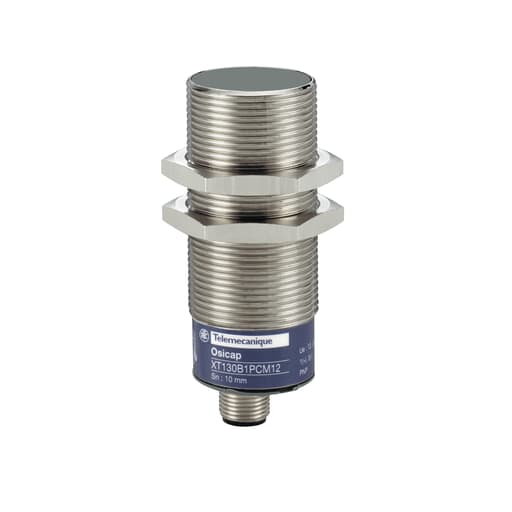

Square-D / Schneider - SQUARED XT130B1PCM12 Telemecanique

The XT offer is a range of capacitive proximity sensors, dedicated to the detection of insulated or conductive materials. These sensors are suitable for the detection of any object irrespective of material or conductivity. This sensor features a cylindrical nickel plated brass case, diameter 30mm, threaded M30 x 1.5 and a M12 connector. Advantages of this capacitive proximity sensor, no physical contact with the object to be detected, high operating rates, solid-state product, no moving parts. It is non flush mountable with a sensing distance of 8mm. 3-wire, 12V to 24V DC, with NO function and a PNP output. Output state indication by a yellow LED. It is suitable for detection (presence or passage) of paper, cardboard, glass, etc. This sensor complies with CE and cETLus certifications, and with IEC 60947-5-2 and UL 61010-1 standards. A threaded sleeve XTAZ30 and a 90. fixing bracket XXZ30, to be ordered separatly, are available to facilitate the mounting and protection of this sensor.
