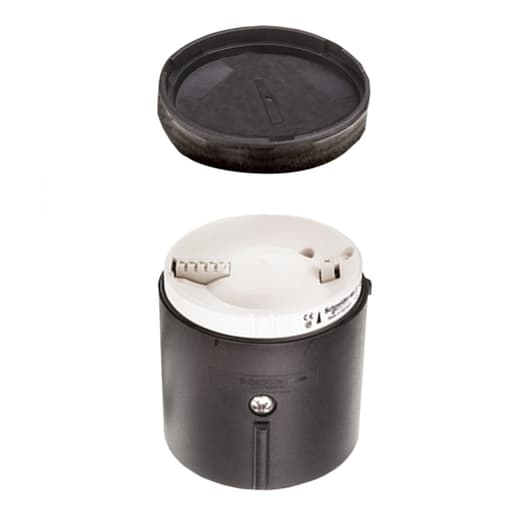

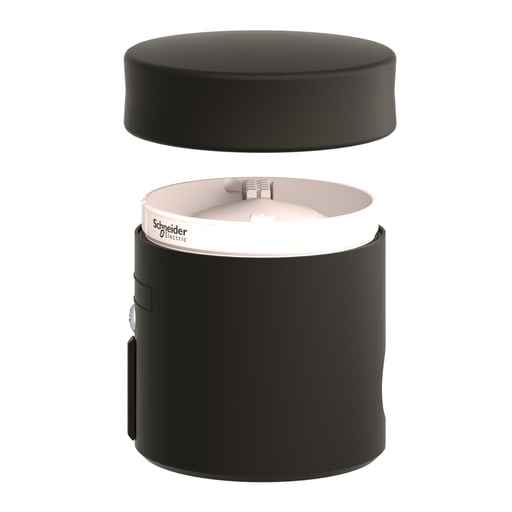

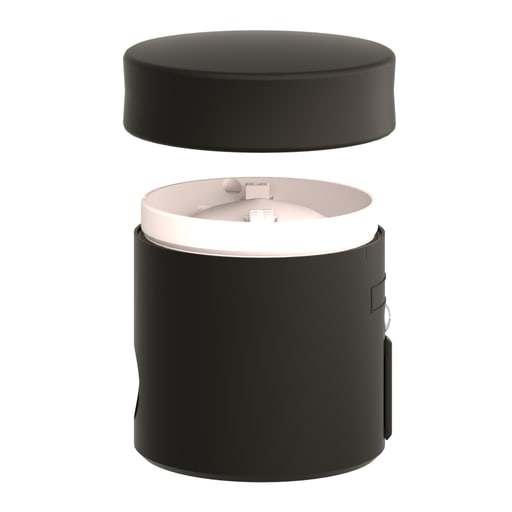

Square-D / Schneider - SQUARED XVBC21A Base unit with cove

Essential specifications

12-Digit UPC - 785901432012
Amperage - 250 MA UNDER LOAD VIA AS-INTERFACE LINE-30 MA UNDER LOAD EXTERNAL-30 MA NO LOAD
Catalog Number - XVBC21A
Country of Origin - France
Current - 250 mA

Packaging

1 ea

EAN

03389110845044

Part #

180140

Catalog #

XVBC21A

Commercial reference

XVBC21A

12-Digit UPC:

785901432012

Amperage:

250 MA UNDER LOAD VIA AS-INTERFACE LINE-30 MA UNDER LOAD EXTERNAL-30 MA NO LOAD

Catalog Number:

XVBC21A

Country of Origin:

France

Current:

250 mA

ERP_productname:

SQD XVBC21A AS-I UNIT FOR XVB STACK LIGHTS

Enclosure:

IP65 IEC 60529-IP65 NF C 20-010,NEMA 4X UL 508 INDOOR)

Family Brand Name:

Schneider Electric

Material:

Glass Reinforced Polyamide: Base Unit,Polycarbonate: Cover Unit

Size:

70 MM

Sub Brand:

XVBC

Type:

BASE UNIT WITH COVER

Voltage:

EXTERNAL 19.2...30 Volt-AS-INTERFACE LINE 24...31.6 Volt

SoneparProductId:

SKU_US_30435217

This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: XVBZ02; XVBZ02A; XVBZ04; XVBZ01; XVBL34; XVBL35; XVBL36
