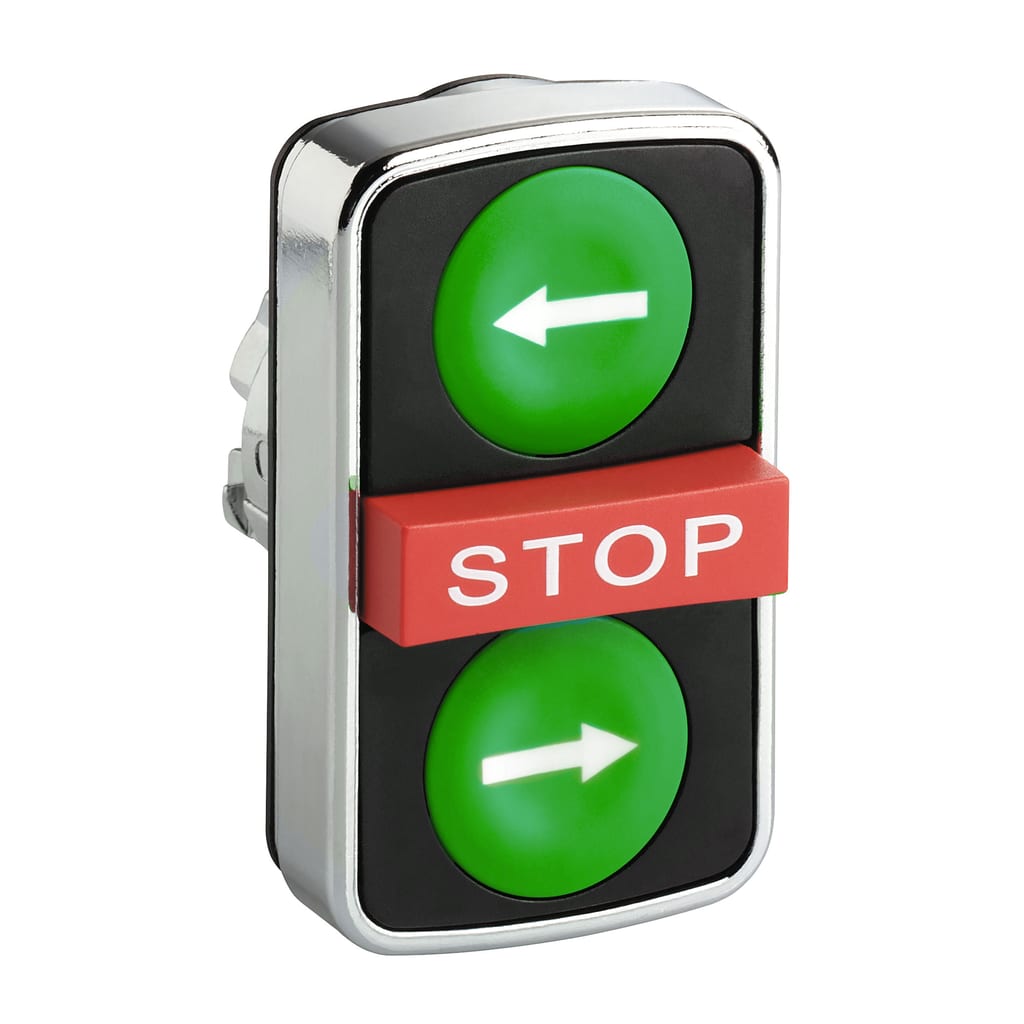

Square-D / Schneider - SQUARED ZB4BA73133 Head for triple

Essential specifications

12-Digit UPC - 785901342229
Actuator - Green ''right arrow'' - green ''left arrow'' - red ''STOP'';2 flush - 1 central projecting STOP push-buttons
Applications - TRIPLE HEAD PUSH-BUTTON
Catalog Number - ZB4BA73133
Color - Green/red/green

Packaging

1 ea

EAN

03389119043649

Part #

361066

Catalog #

ZB4BA73133

Commercial reference

ZB4BA73133

12-Digit UPC:

785901342229

Actuator:

Green ''right arrow'' - green ''left arrow'' - red ''STOP'';2 flush - 1 central projecting STOP push-buttons

Applications:

TRIPLE HEAD PUSH-BUTTON

Catalog Number:

ZB4BA73133

Color:

Green/red/green

Country of Origin:

France

ERP_productname:

SQD ZB4BA73133 HEAD FOR TRIPLE HEADED PUSH BUTTON, HARMONY XB4, GREEN FLUSH/RED PROJECTING/GREEN FLUSH PUSHBUTTON ?22 MM WITH MARKING

Enclosure:

NEMA 13-NEMA 4X

Family Brand Name:

Schneider Electric

Head Type:

Standard

Size:

0.87 in

Sub Brand:

ZB4

Type:

Head for triple-headed push-button

SoneparProductId:

SKU_US_193407174

This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It is marked with "left arrow", "STOP" and "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product.
