Square-D / Schneider - SQUARED ZB4BVM3 Light block with bo
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901277491
Catalog Number - ZB4BVM3
Color - Green
Country of Origin - France
Current - 14 mA
Packaging
1 ea
EAN
03389110892499
Part #
225881
Catalog #
ZB4BVM3
Commercial reference
ZB4BVM3
12-Digit UPC:
785901277491
Catalog Number:
ZB4BVM3
Color:
Green
Country of Origin:
France
Current:
14 mA
ERP_productname:
SQD ZB4BVM3 230-240V GRN PROTECTED LED W/MNT COLLAR
Family Brand Name:
Schneider Electric
Size:
30 MM,37 MM,47 MM
Sub Brand:
ZB4
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END
Type:
Complete body/light block assembly
Voltage:
230...240 Volt AC 50/60 HZ
SoneparProductId:
SKU_US_29990649

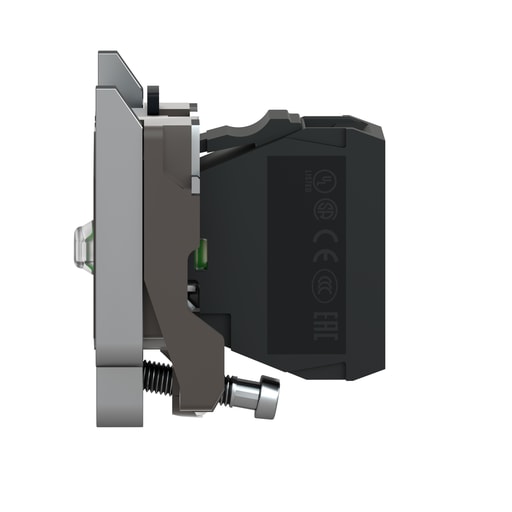

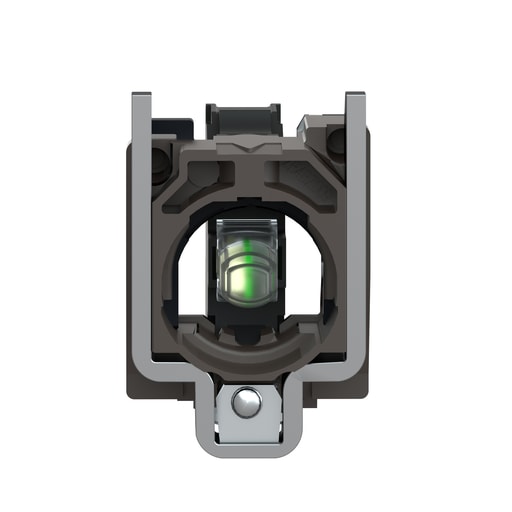

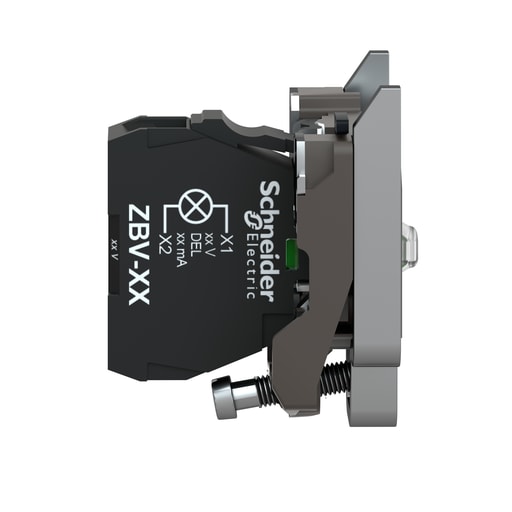

This Harmony XB4, light block with body/fixing collar is green, operates with an integral LED. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 55.C allows versatility in usage of product.
