Square-D / Schneider - SQUARED ZB5AVG6 Light block with bo
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901383451
Catalog Number - ZB5AVG6
Color - Blue
Country of Origin - France
Current - 14 mA
Packaging
1 ea
EAN
03389110907933
Part #
134963
Catalog #
ZB5AVG6
Commercial reference
ZB5AVG6
12-Digit UPC:
785901383451
Catalog Number:
ZB5AVG6
Color:
Blue
Country of Origin:
France
Current:
14 mA
ERP_productname:
SQD ZB5AVG6 MOUNTING BASE W 120V BLUE PROTECTED LED
Family Brand Name:
Schneider Electric
Size:
30 MM,32 MM,42 MM
Sub Brand:
ZB5
Tc Connection:
SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1
Type:
Complete body/light block assembly
Voltage:
110...120 Volt AC 50/60 HZ
SoneparProductId:
SKU_US_29490135

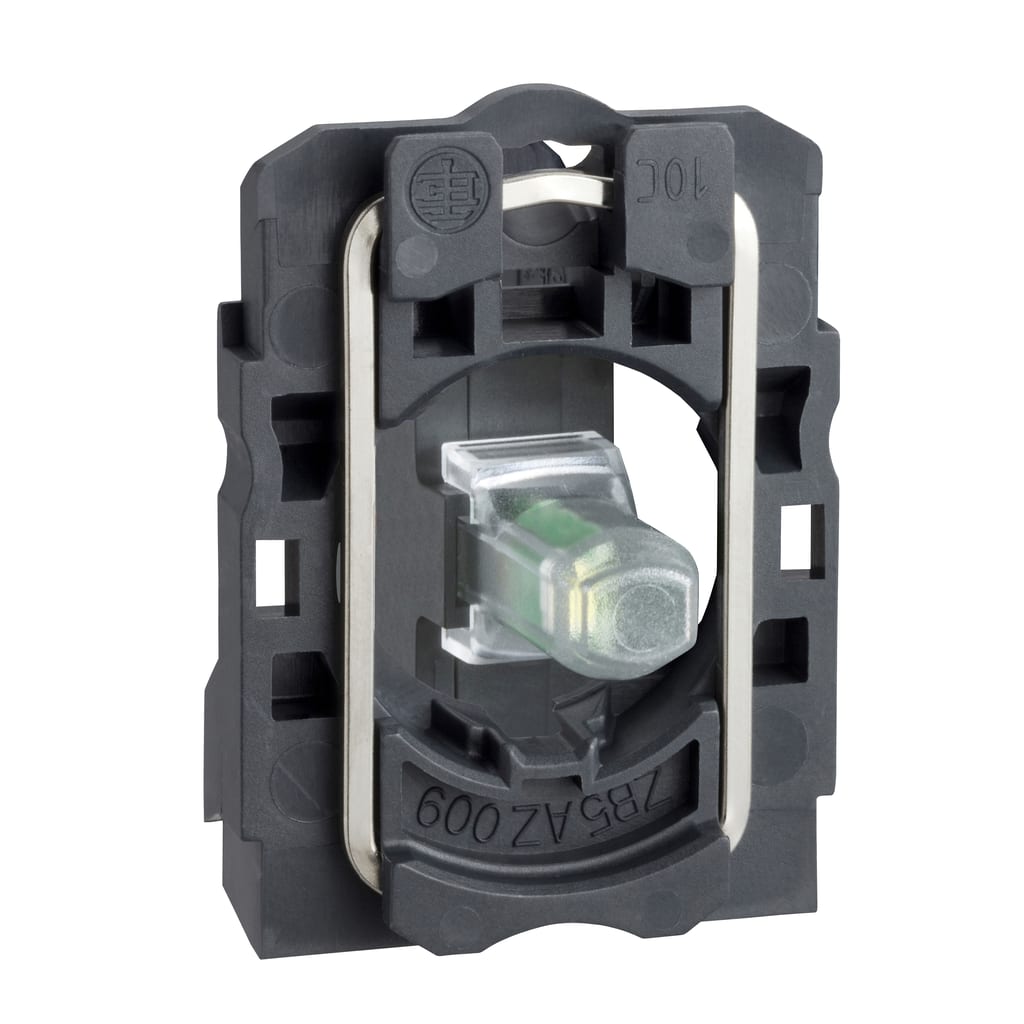

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
