Square-D / Schneider - SQUARED ZB5AVM3 Light block with bo

Essential specifications

12-Digit UPC - 785901682059
Catalog Number - ZB5AVM3
Country of Origin - France
Current - 14 mA
ERP_productname - SQD ZB5AVM3 240V GREEN LED L/M & MOUNTING COLLAR

Packaging

1 ea

EAN

03389110907971

Part #

179697

Catalog #

ZB5AVM3

Commercial reference

ZB5AVM3

12-Digit UPC:

785901682059

Catalog Number:

ZB5AVM3

Country of Origin:

France

Current:

14 mA

ERP_productname:

SQD ZB5AVM3 240V GREEN LED L/M & MOUNTING COLLAR

Family Brand Name:

Schneider Electric

Size:

30 MM,32 MM,42 MM

Sub Brand:

ZB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

COMPLETE BODY/LIGHT BLOCK ASSEMBLY

Voltage:

230...240 Volt AC 50/60 HZ

SoneparProductId:

SKU_US_30816947

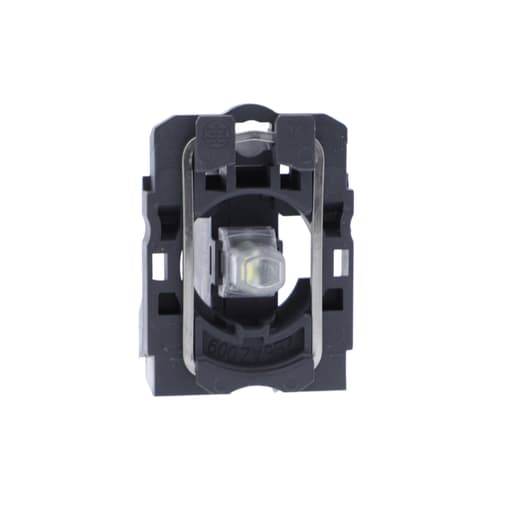

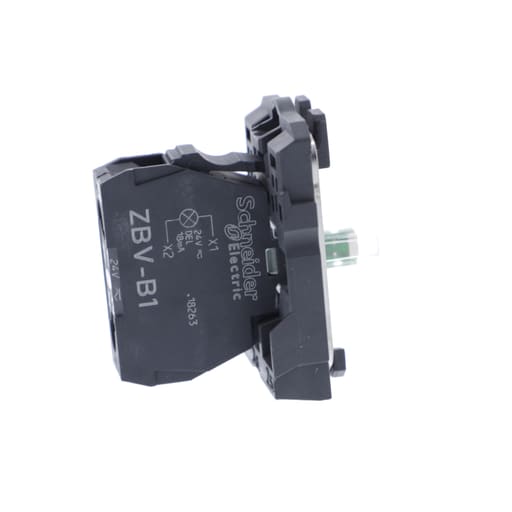

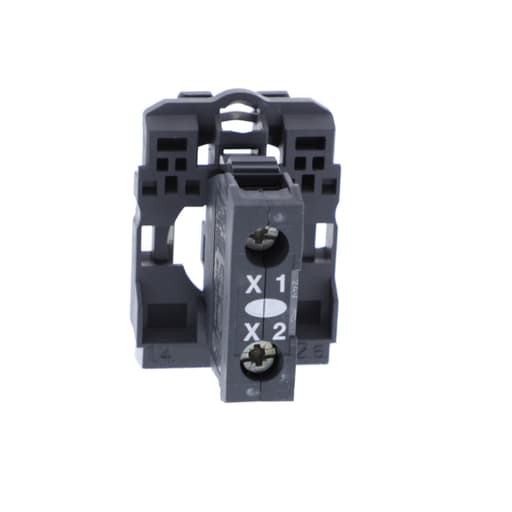

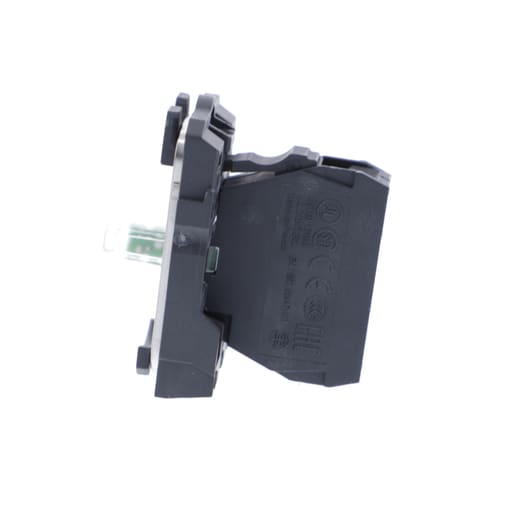

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
