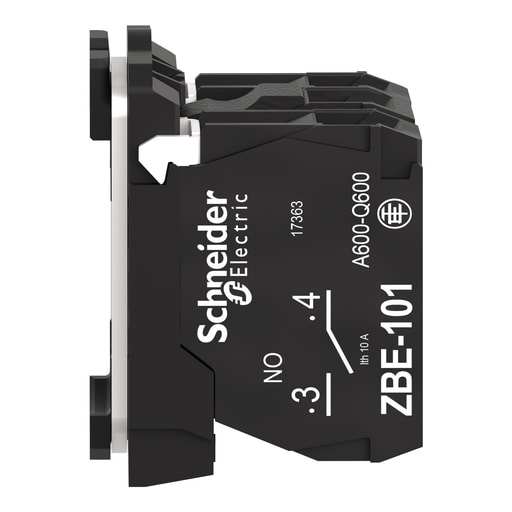

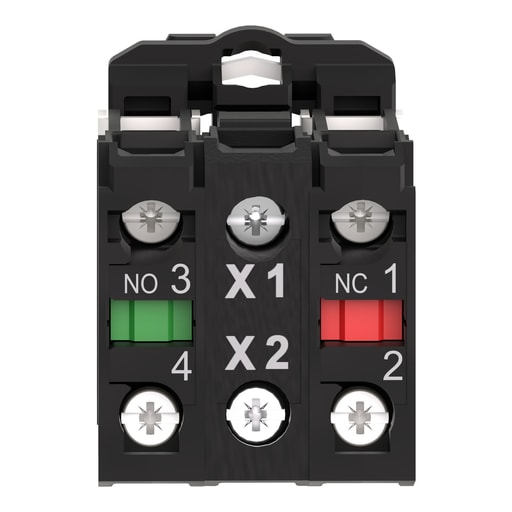

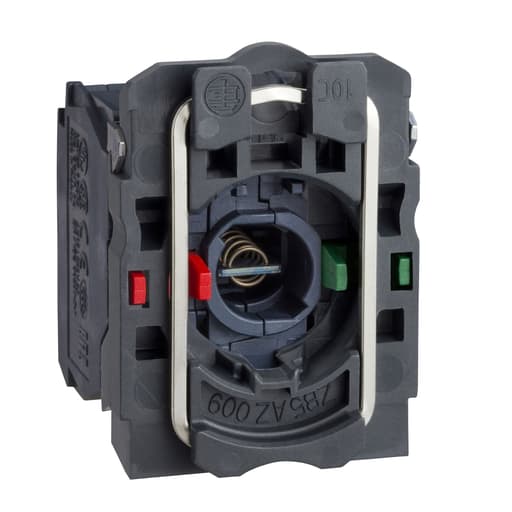

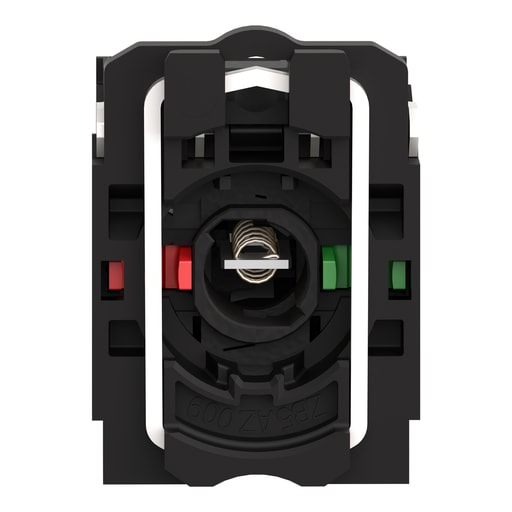

Square-D / Schneider - SQUARED ZB5AW065 Light block with b

Essential specifications

12-Digit UPC - 389110909787
Amperage - 3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1
Catalog Number - ZB5AW065
Country of Origin - France
ERP_productname - SQD ZB5AW065 HARMONY XB5, LIGHT BLOCK WITH BODY/FIXING COLLAR, PLASTIC, BLUE, FOR BA9S BULB, <= 250 V, 1 NO + 1 NC

Packaging

1 ea

EAN

03389110909784

Part #

241493

Catalog #

ZB5AW065

Commercial reference

ZB5AW065

12-Digit UPC:

389110909787

Amperage:

3 Amp 240 V, AC-15, A600 EN/IEC 60947-5-1-6 Amp 120 V, AC-15, A600 EN/IEC 60947-5-1-0.1 Amp 600 V, DC-13, Q600 EN/IEC 60947-5-1-0.27 Amp 250 V, DC-13, Q600 EN/IEC 60947-5-1-0.55 Amp 125 V, DC-13, Q600 EN/IEC 60947-5-1-1.2 Amp 600 V, AC-15, A600 EN/IEC 60947-5-1

Catalog Number:

ZB5AW065

Country of Origin:

France

ERP_productname:

SQD ZB5AW065 HARMONY XB5, LIGHT BLOCK WITH BODY/FIXING COLLAR, PLASTIC, BLUE, FOR BA9S BULB, <= 250 V, 1 NO + 1 NC

Family Brand Name:

Schneider Electric

Head Type:

Standard

Heights:

42 mm

Size:

30 MM,32 MM,42 MM

Sub Brand:

ZB5

Tc Connection:

SCREW CLAMP TERMINALS, <= 2 X 1.5 MMA. WITH CABLE END EN 60947-1-SCREW CLAMP TERMINALS, >= 1 X 0.22 MMA. WITHOUT CABLE END EN 60947-1

Type:

Complete body/contact assembly and light block

Voltage:

<= 250 Volt

Widths:

30 mm

SoneparProductId:

SKU_US_29235122

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: ZB5AZ905; ZBY2101; ZBYLEG503001; ZBYP2101 - Cross Sell Products: NSYPLM43G; XALK84W3BE - Spare Part Products: ZB5AV6; ZB5AZ009; ZBE101; ZBE102
